DrivePro Auto
DrivePro Auto

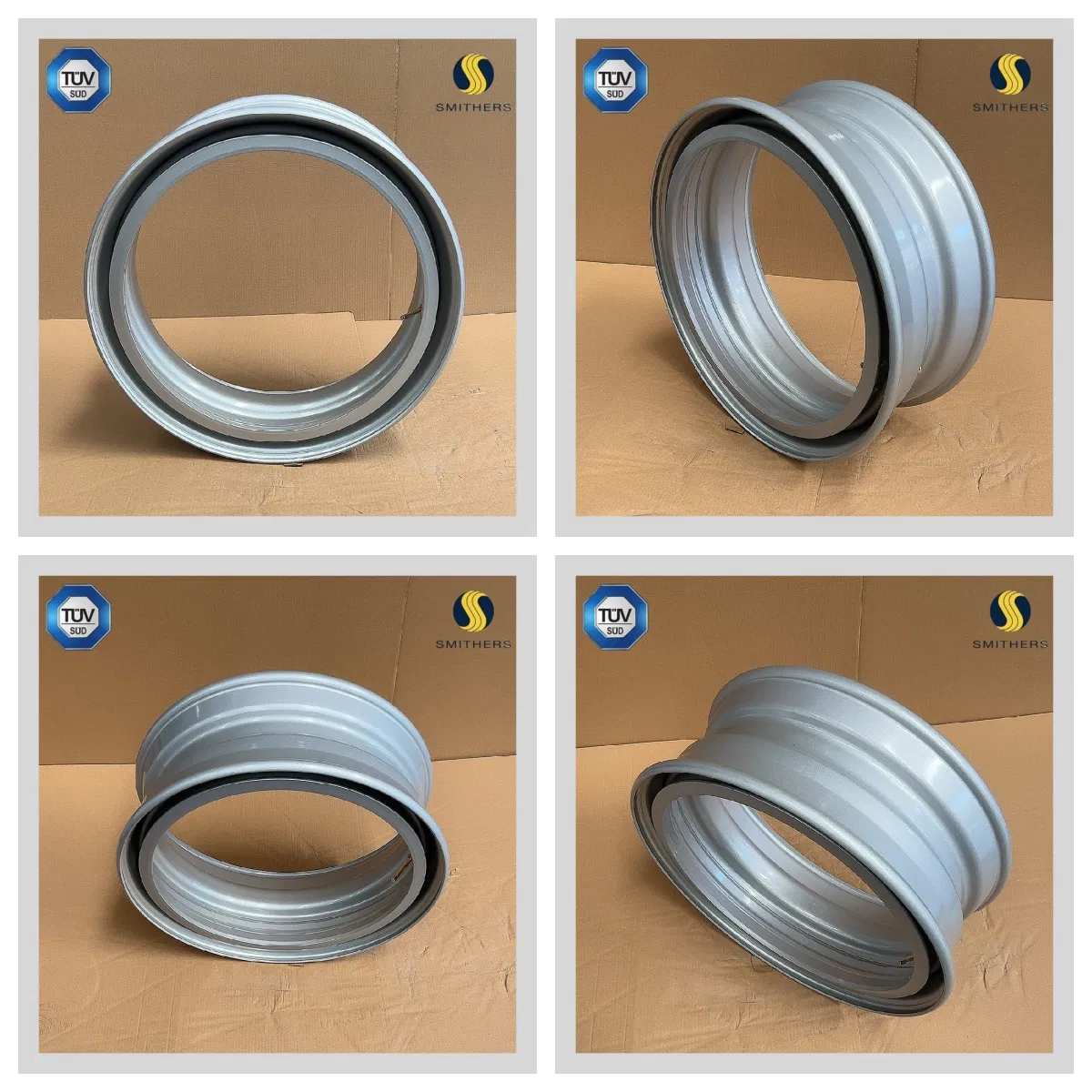

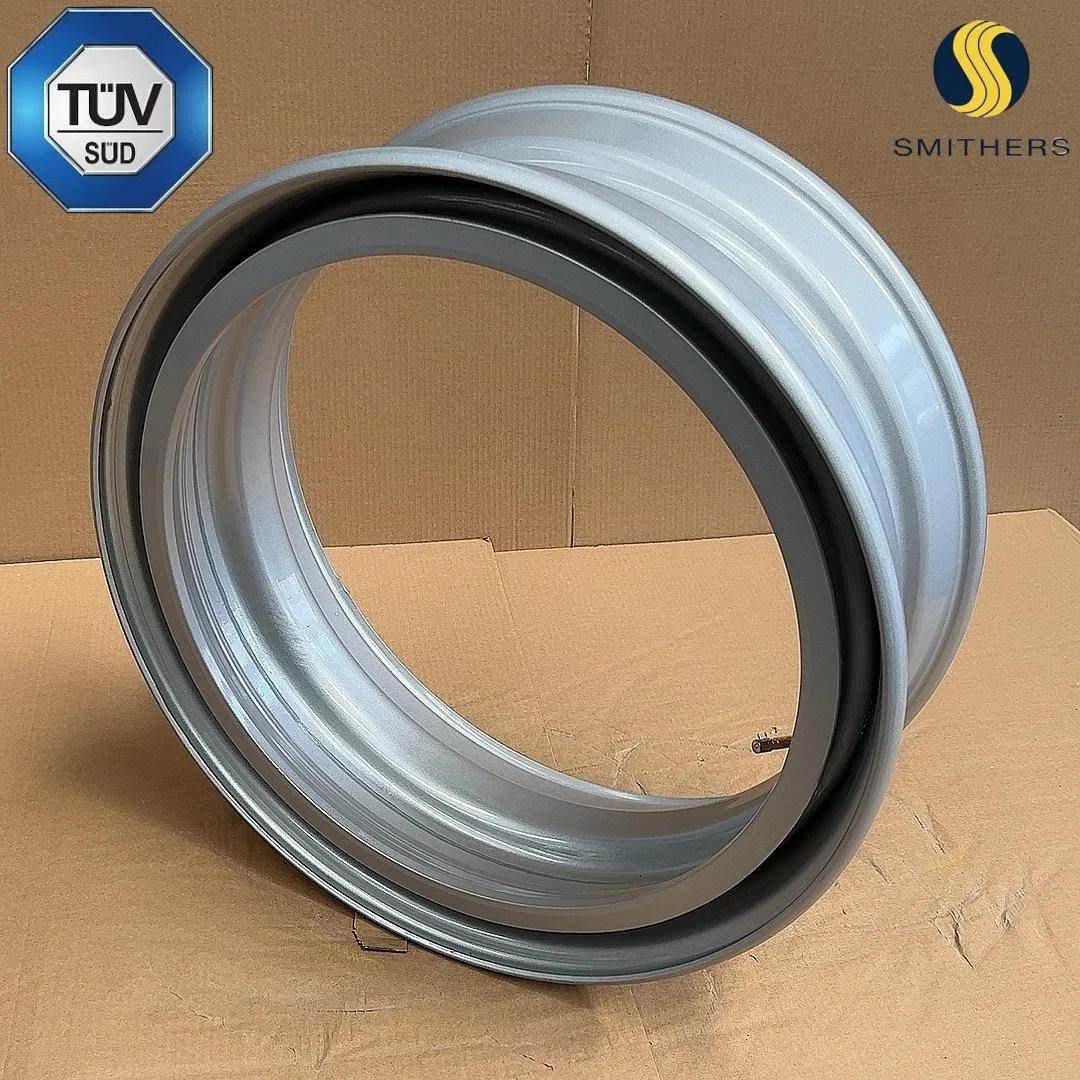

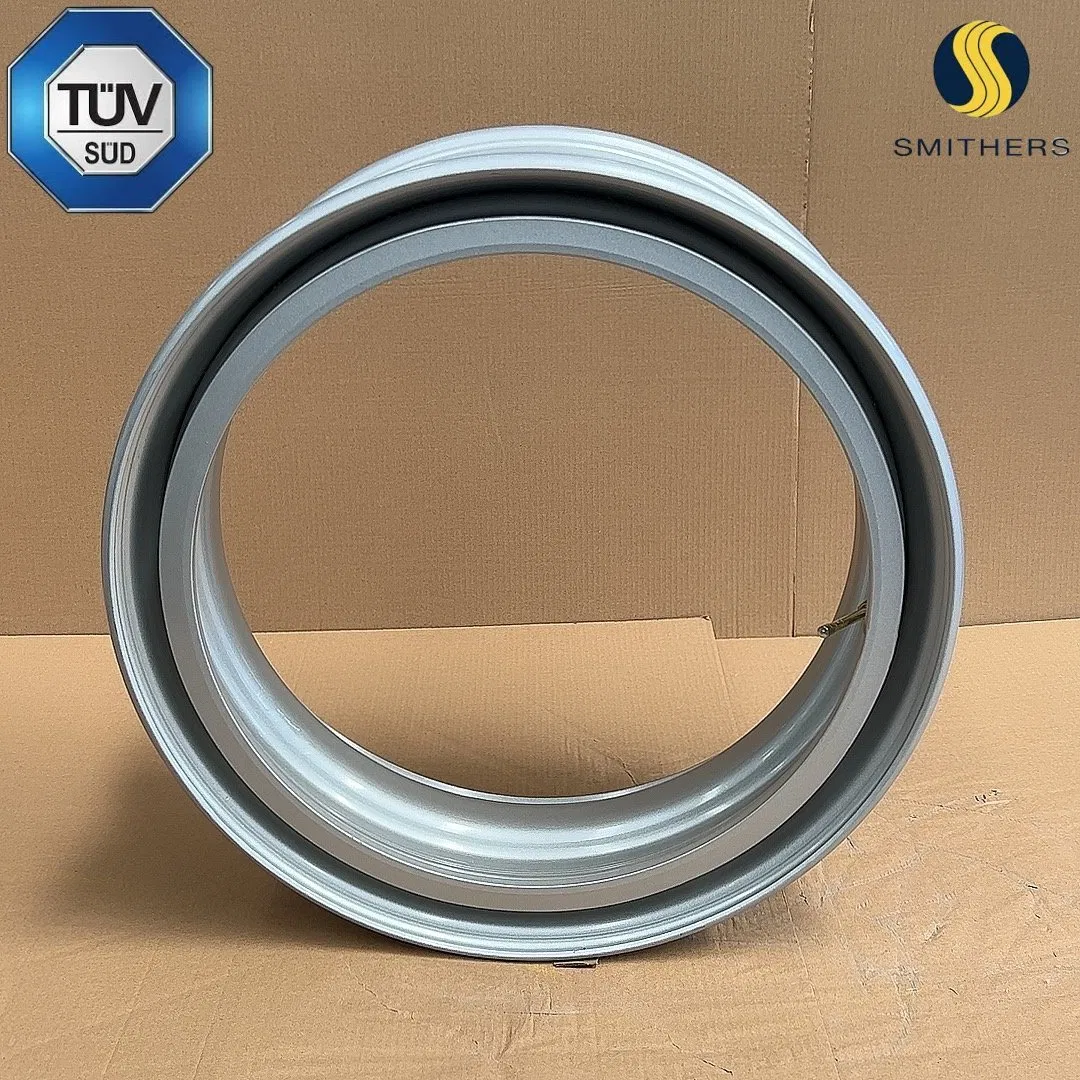

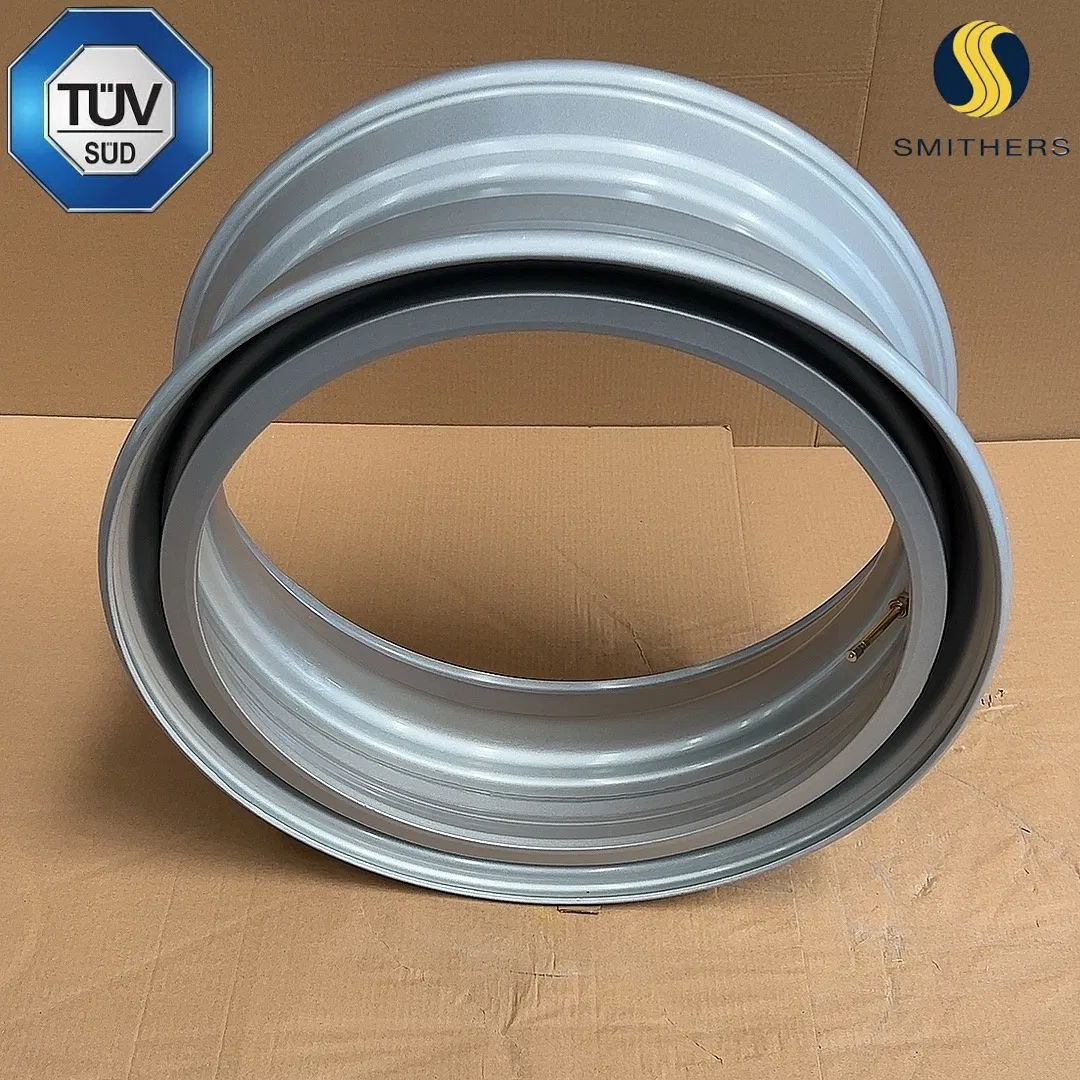

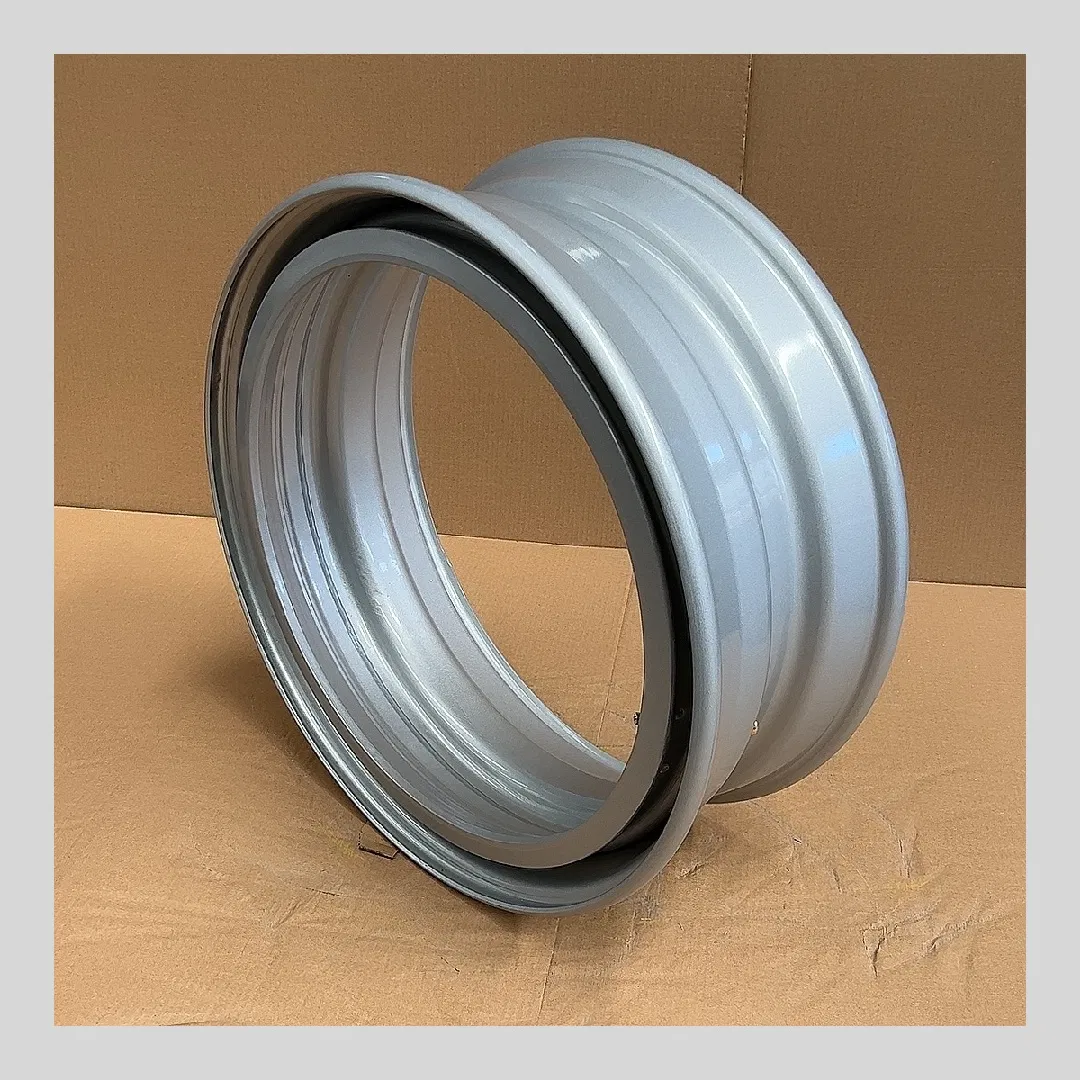

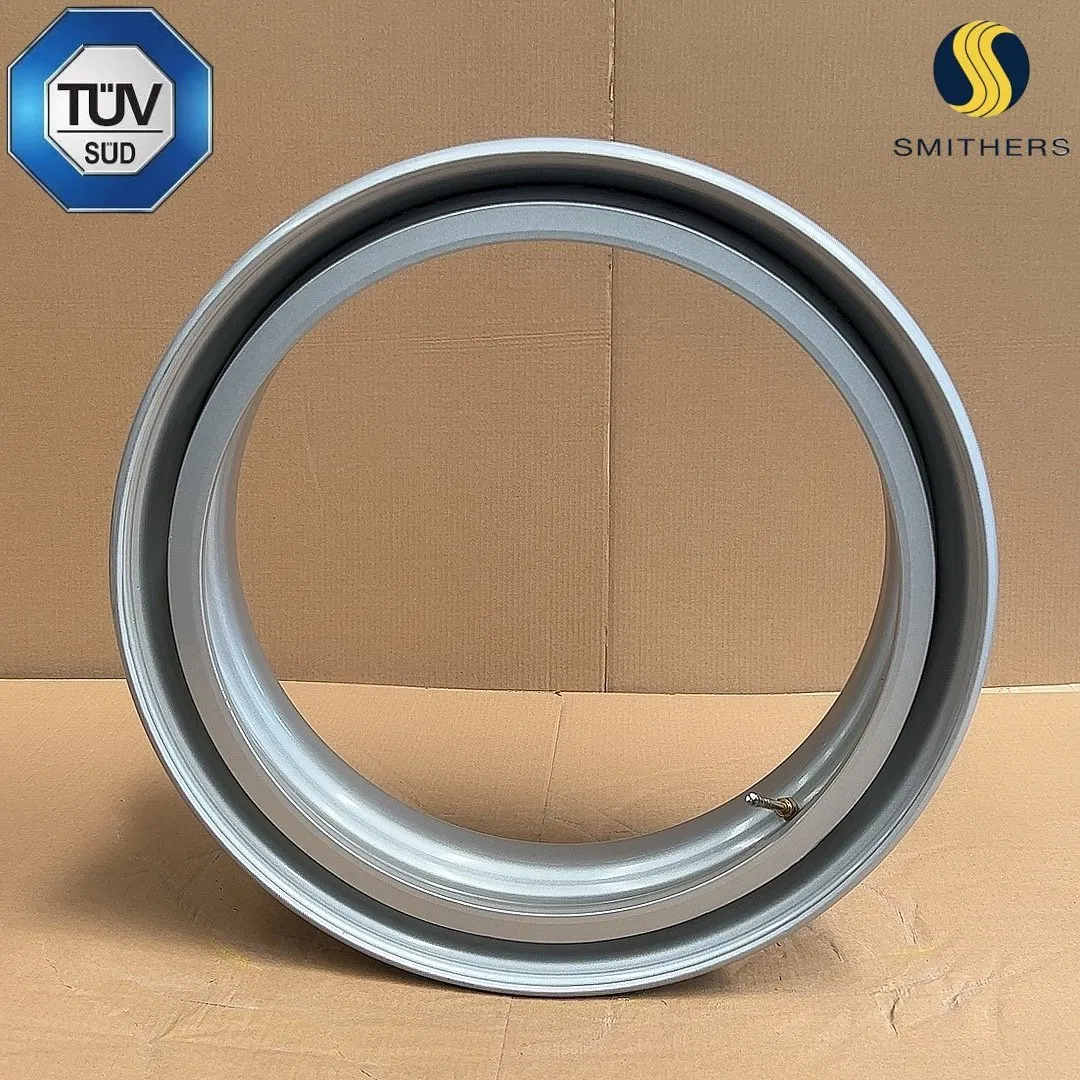

This is a truck wheel rim. Made of high-strength metal, it features a durable, silver-colored design. Its basic function is to securely hold the tire, support the vehicle's weight, and ensure stable driving.
| Wheel Size | Bolt Holes | P.C.D (mm) | C.B.D (mm) | Offset (mm) | Disk Thick | Rec. Type | ||
|---|---|---|---|---|---|---|---|---|
| No. | Dia | Type | ||||||
| 17.5X6.00 | 5/6/8/10 | 26-32 | SR22/1x45° | 203.2-275 | 146-221 | 127-135 | 10/12mm | 8R17.5 / 215/75R17.5 |
| 19.5X6.75 | 6/8/10 | 26-32 | SR22/1x45° | 222.25-275 | 164-221 | 145 | 12mm | 8R19.5 / 245/70R19.5 |
| 22.5X7.50 | 8/10 | 26 | 1x45° | 275-335 | 221-281 | 165 | 14/16mm | 10R22.5 / 275/80R22.5 |
| 22.5X8.25 | 8/10 | 26-32 | SR22/1x45° | 285-335 | 221-281 | 169-171 | 14/16mm | 11R22.5 / 295/80R22.5 |
| 22.5X9.00 | 8/10 | 26-32 | 1x45° | 285-335 | 221-281 | 169-175 | 14/16mm | 12R22.5 / 315/80R22.5 |
| 22.5X11.75 | 10 | 26 | 1x45° | 335 | 281 | 0/120/135 | 14/16mm | 385/65R22.5 |

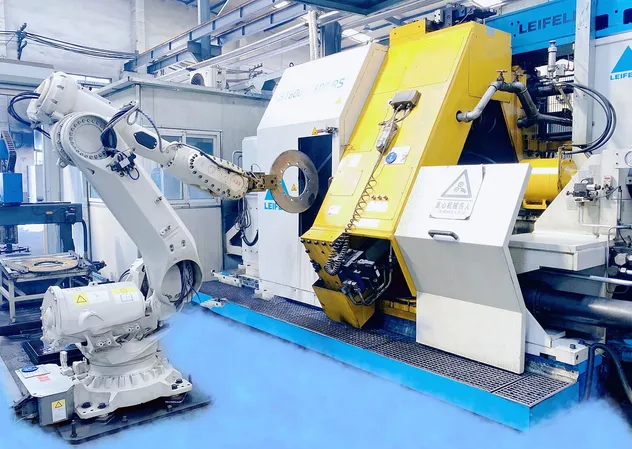

The company is a large enterprise integrating technology, R&D, production, and sales. With an annual production capacity of 2 million sets of wheels, we utilize independent laboratories to provide professional technical support and quality guarantee. Our processes achieve full control from development to after-sales service.
