Steel Wheel Rim 13X17 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.
13x17
Diameter
17"
Type
Tubeless
Certification
ISO, DOT, CCC, ECE
Usage
Tractors, Harvesters, Cultivators
Tire Design
Radial Tyre
Main Market
Europe
Transport Package
Pallets
Origin
China
HS Code
870870
Production Capacity
1,200,000 Units
Product Description

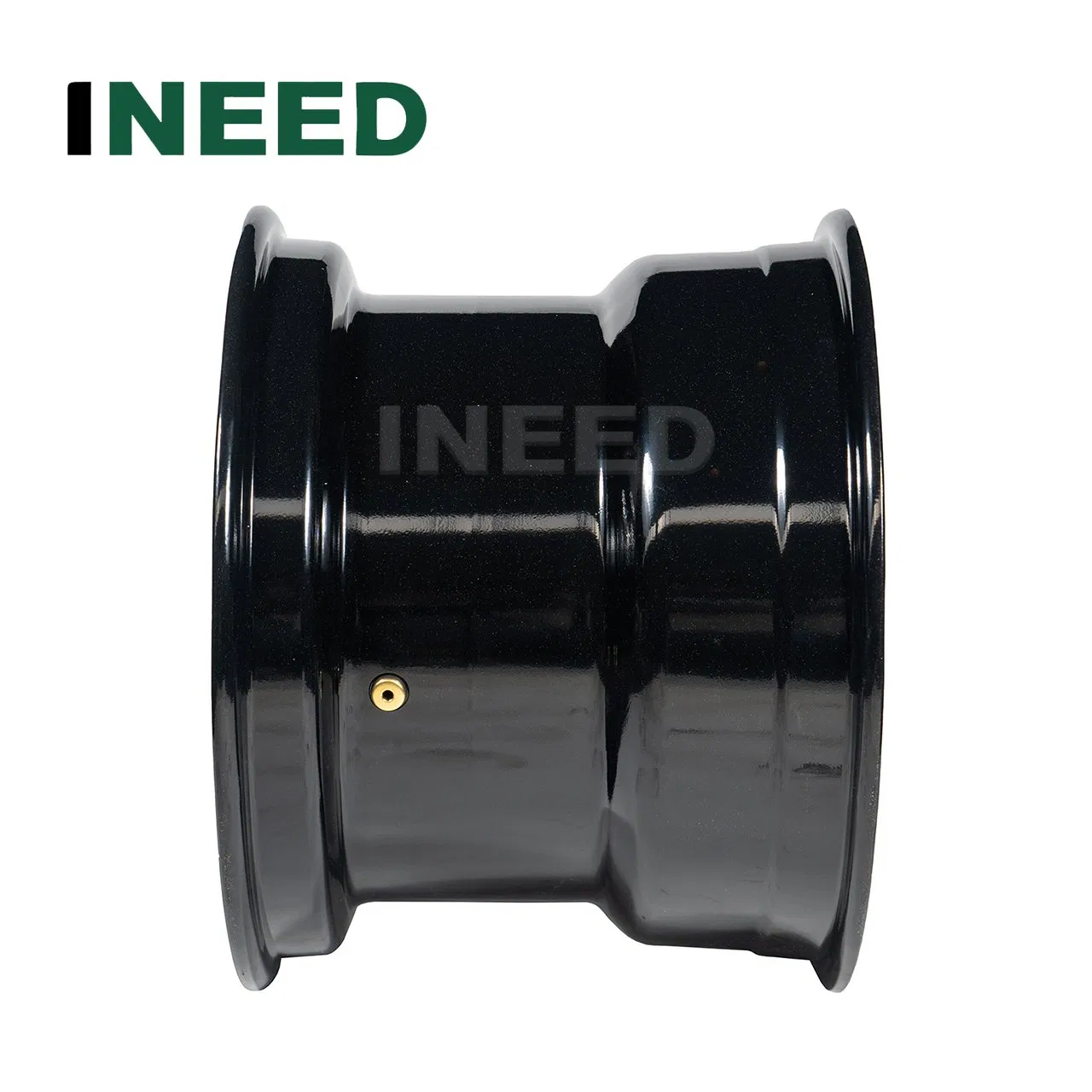

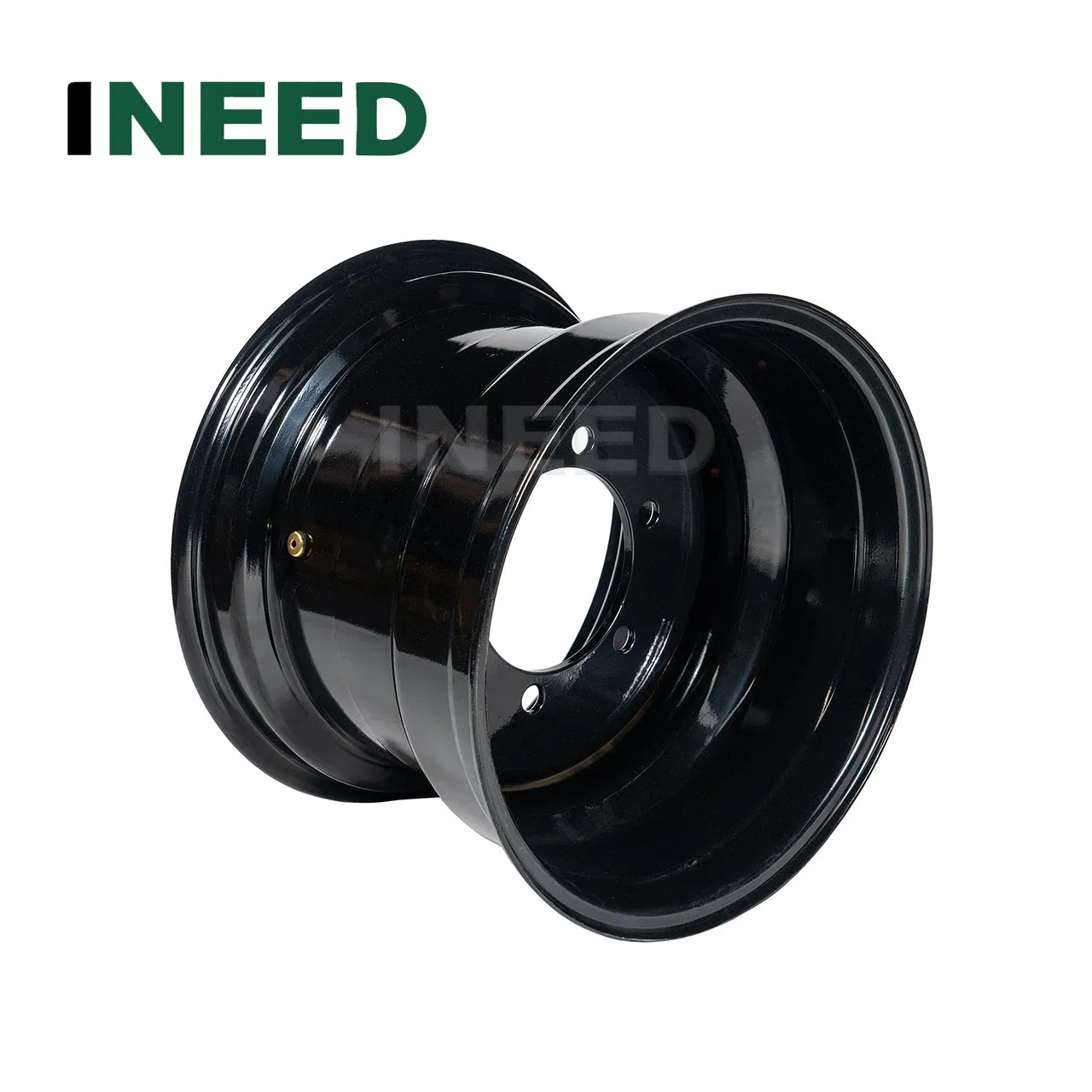

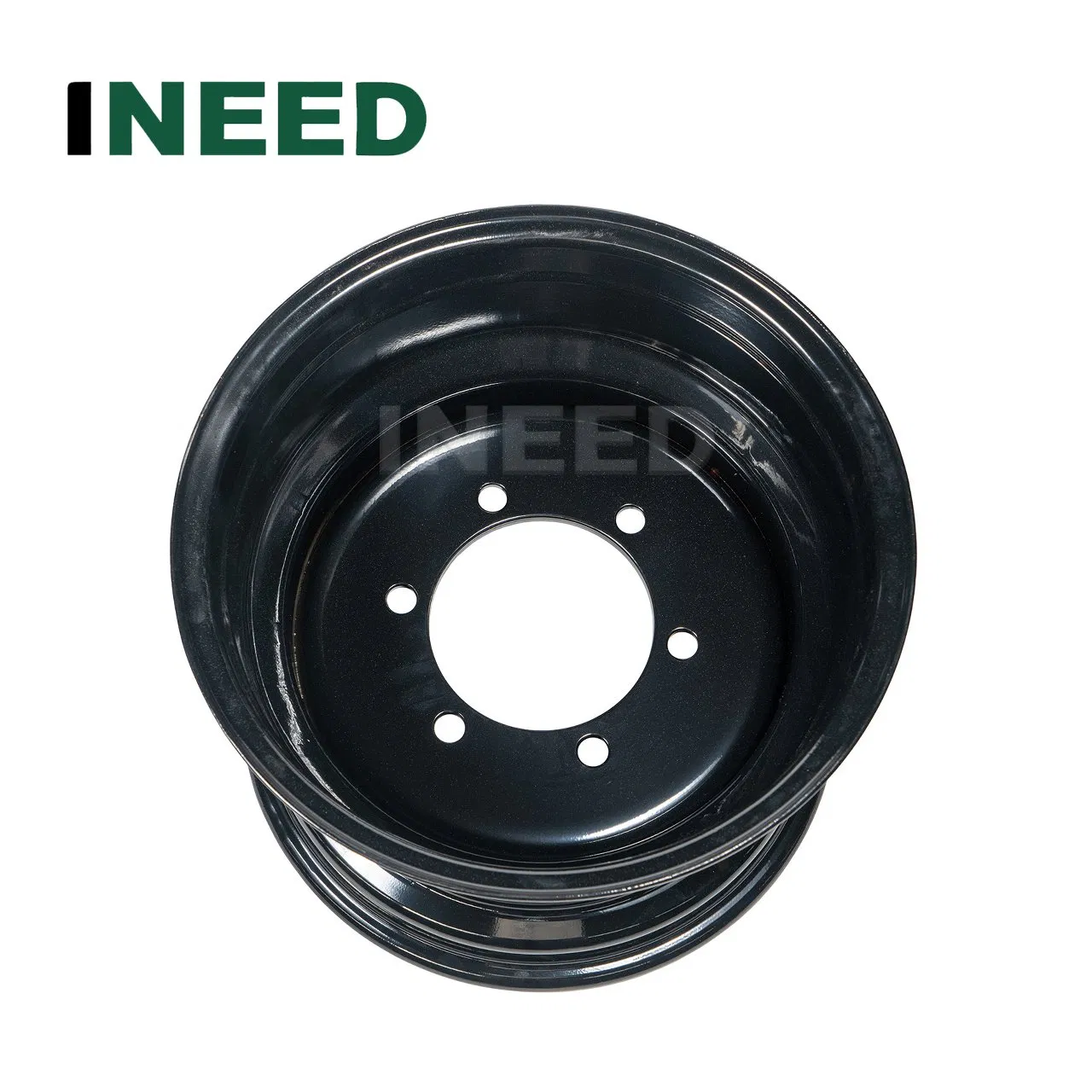

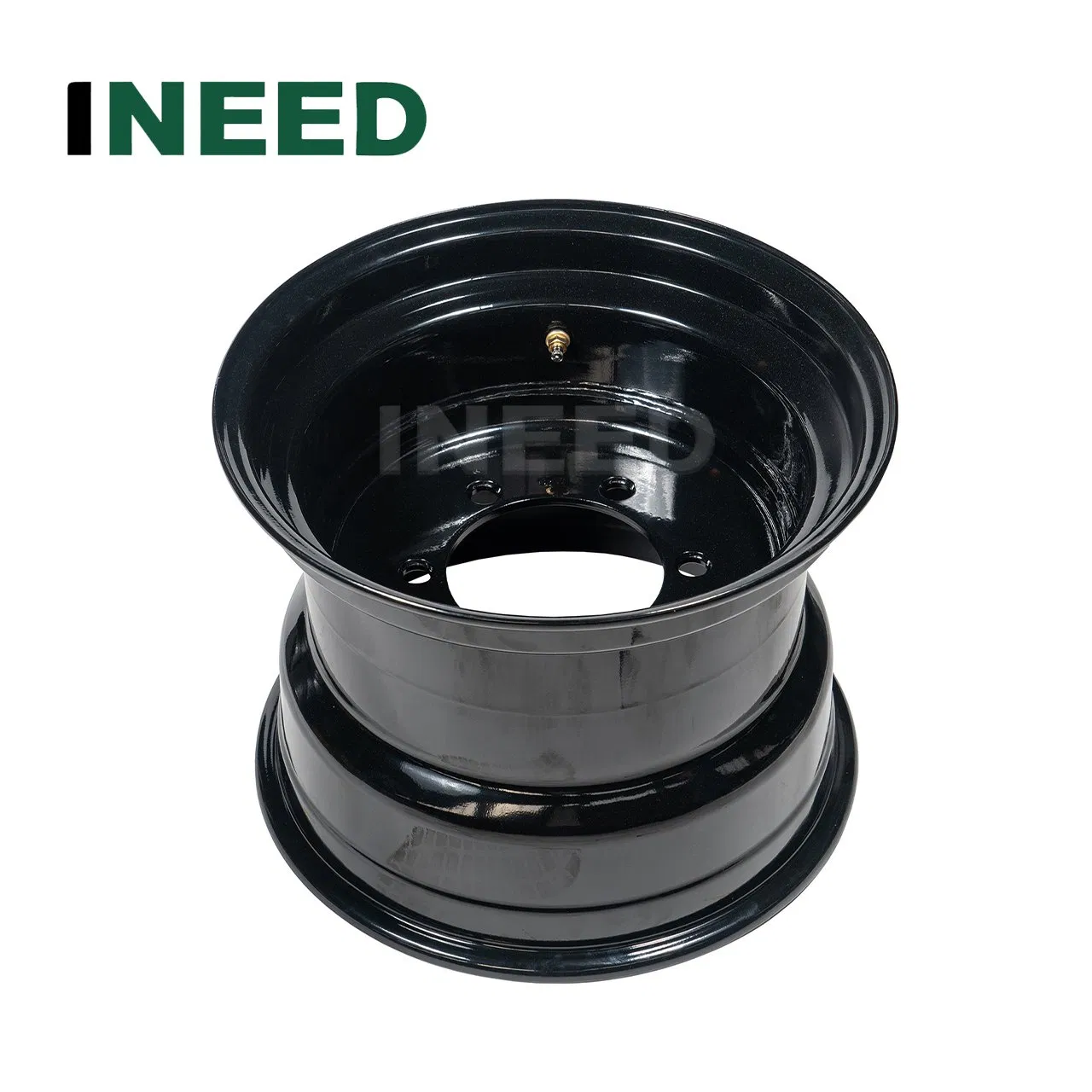

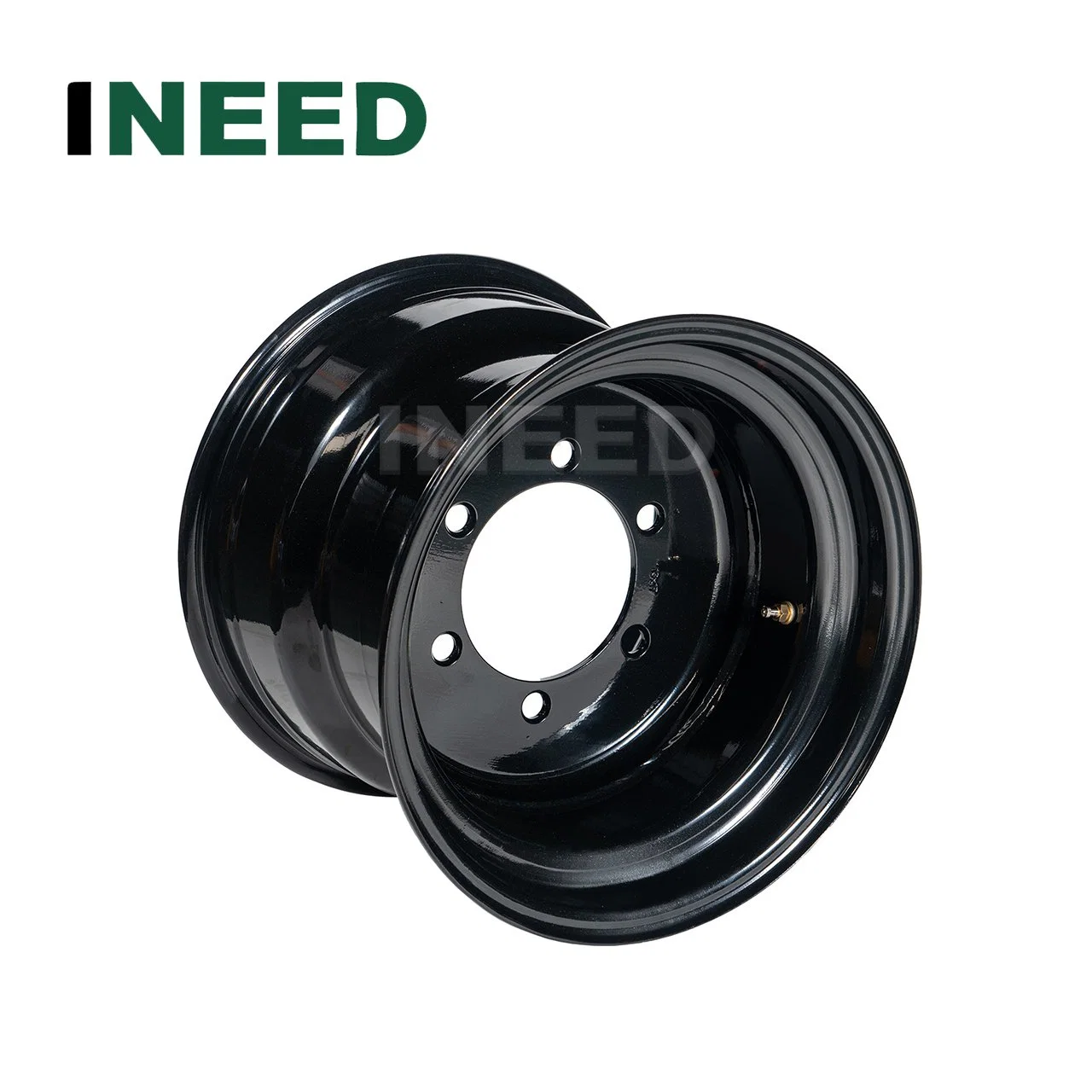

Steel Wheel Rim 13X17 for Agricultural Machinery
Inch Wheel Size Tyre Size Part Number P.C.D (mm) Center Hole (mm) Hole Type Bolt Holes Offset (mm)
17 13x17 15.0/55-17, 425/40R17, 425/55R17 1317A2P0 205 161 A2 6 0
Additional Size Options
Inch Wheel Size Tyre Size P.C.D (mm) Center Hole (mm) Hole Type Bolt Holes Offset (mm)
15.3 9x15.3 10.0/75-15.3, 11.5/80-15.3 125/140/205 90/94/161 16/A2/A1 5/6 0/15
15.5 13x15.5 400/60-15.5 205 161 A2 6 0/N35
16 W6x16 / W8x16 215/65-16, 10.0/65-16 150/205 90/161 15.5/A2 6 50/0
17.5 5.25 / 6.00 / 6.75x17.5 9R17.5, 215/75R17.5 205/275 161/221 A2/B2 6/8 0/141/145
19.5 7.50 / 8.25 / 11.75x19.5 245/70R19.5, 385/55R19.5 205/225/275 161/176/221 A2/A3 6/8/10 0
22.5 7.50 to 20.00x22.5 11R22.5, 385/65R22.5, 600/55-22.5 205/275/335 161/221/281 A2/A3/B3 6/8/10 0/N50/N100
26.5 20x26.5 600/55R26.5, 650/55R26.5 275/335 221/281 B2/A3 8/10 0/N50
32 DW27x32 30.5L32, 800/65R32 275/335 221/281 A3/A4 8/10 0/N50/N74
Frequently Asked Questions
What applications are these steel wheel rims suitable for?
These rims are specifically designed for agricultural machinery, including tractors, harvesters, cultivators, flotation trailers, and forestry equipment.
Do the wheels come with any quality certifications?
Yes, all our wheels meet international standards and are certified by ISO, DOT, CCC, and ECE, ensuring high safety and durability for heavy-duty use.
Are these rims compatible with tubeless tires?
Yes, these are tubeless-type (TL) wheel rims, which offer better heat dissipation and are easier to maintain for modern agricultural operations.
Can I get different offset or bolt hole configurations?
We offer a wide variety of P.C.D, center hole diameters, and offset options (including negative offsets) to match specific axle requirements. Customization is available upon request.
What is the main material and design of the 13x17 rim?
The rim is constructed from high-strength steel and is designed as a radial tyre compatible structure, optimized for flotation and heavy load distribution.
What is the standard packaging for international shipping?
To ensure safety during transport, the wheel rims are securely packed on pallets, which are ideal for maritime and long-distance logistics.
