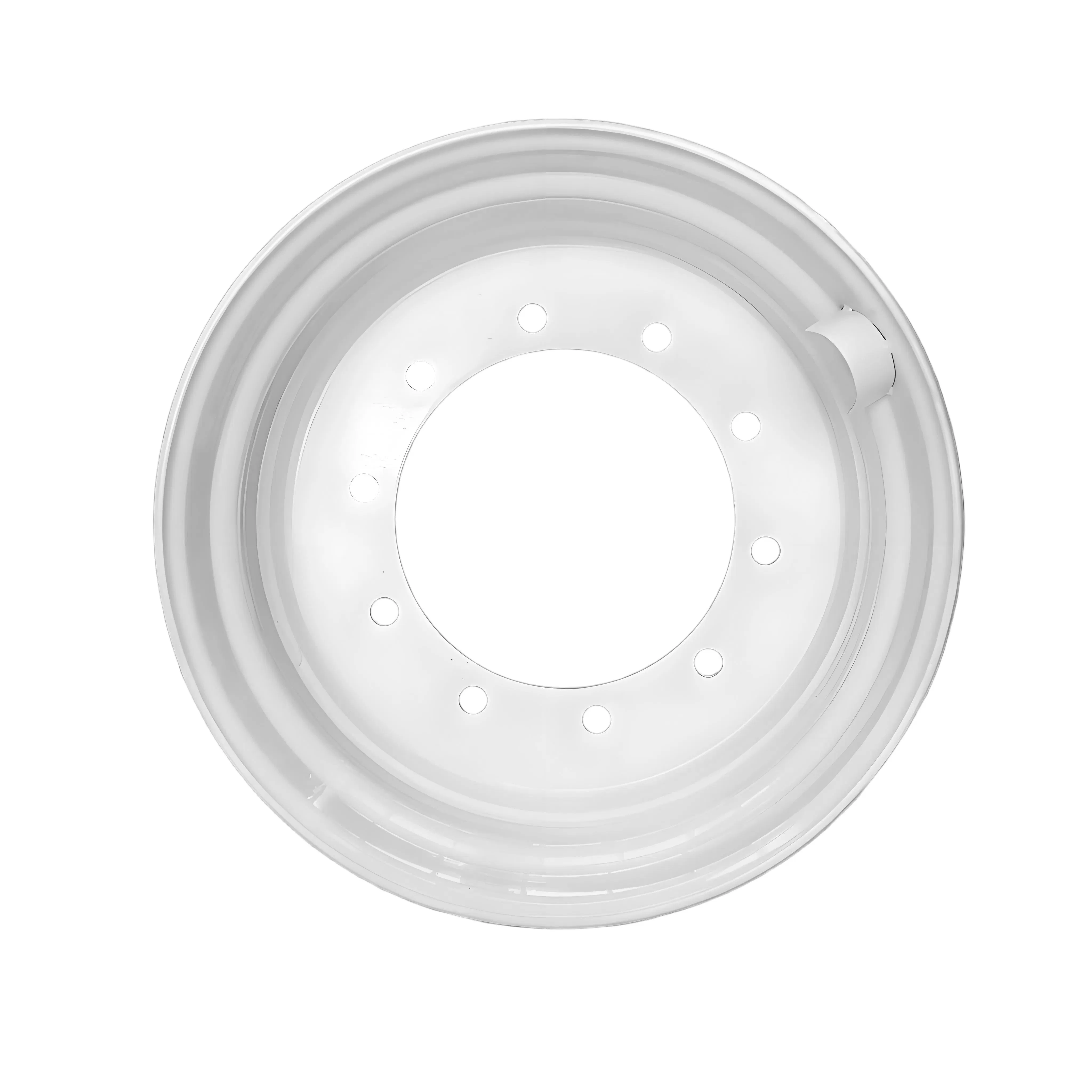

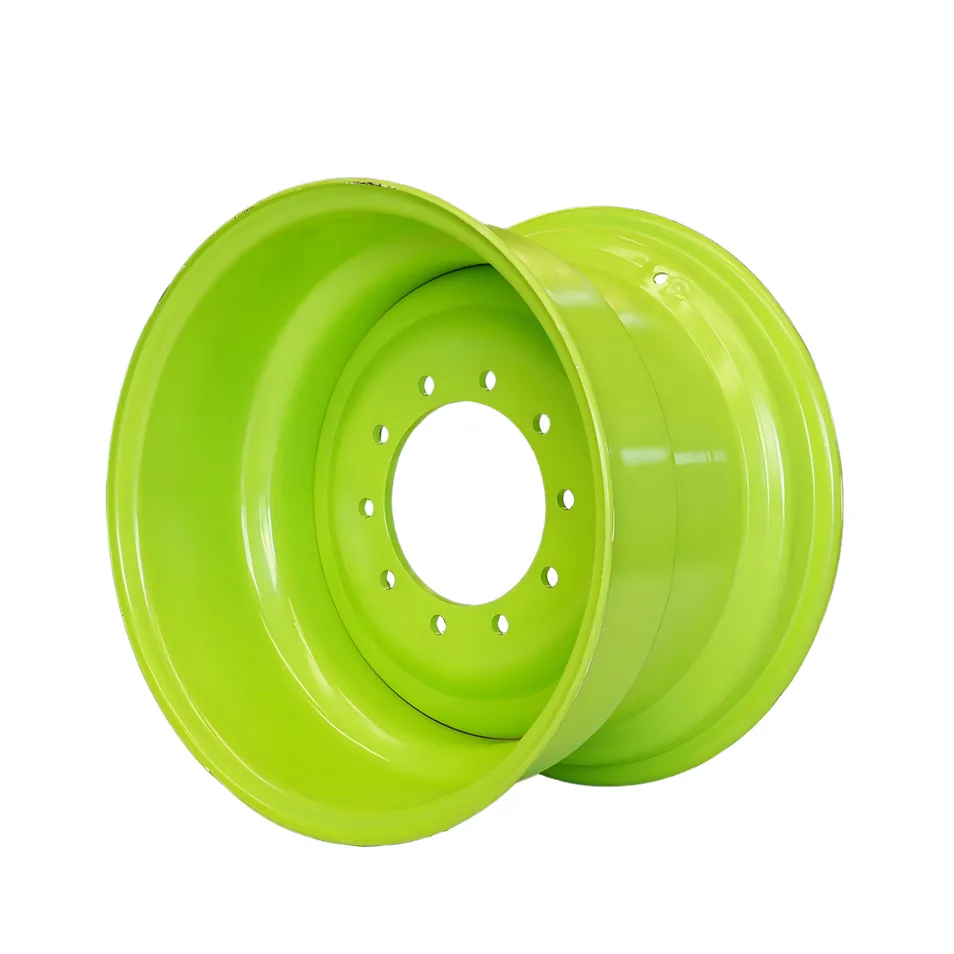

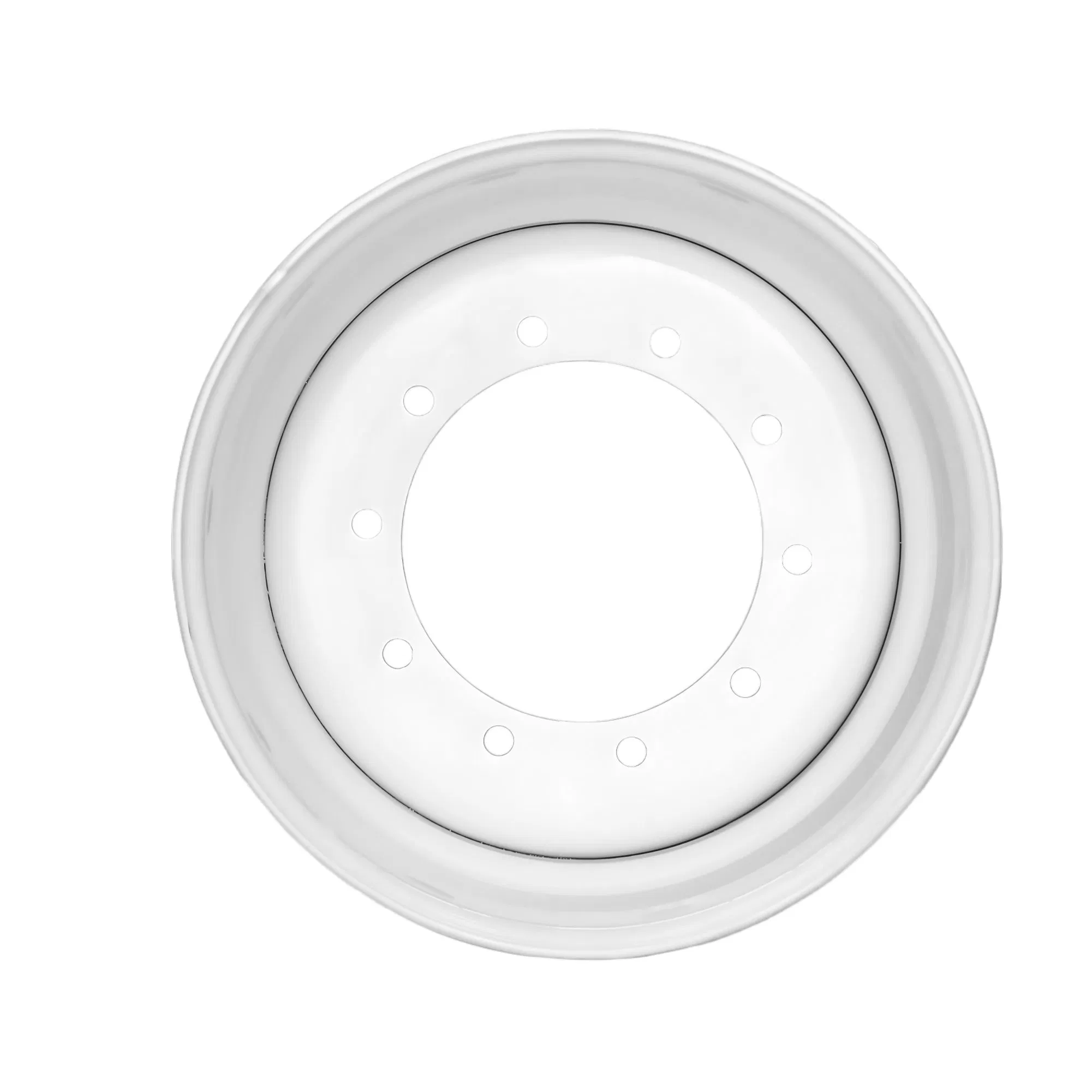

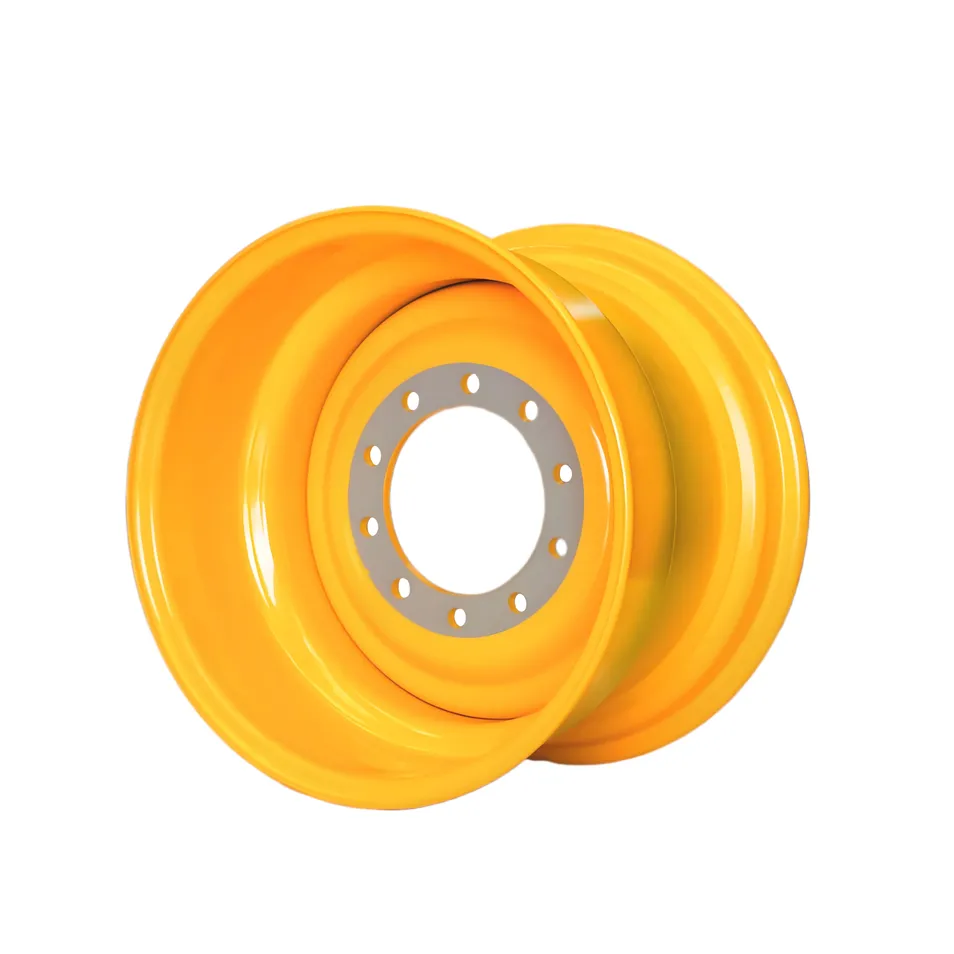

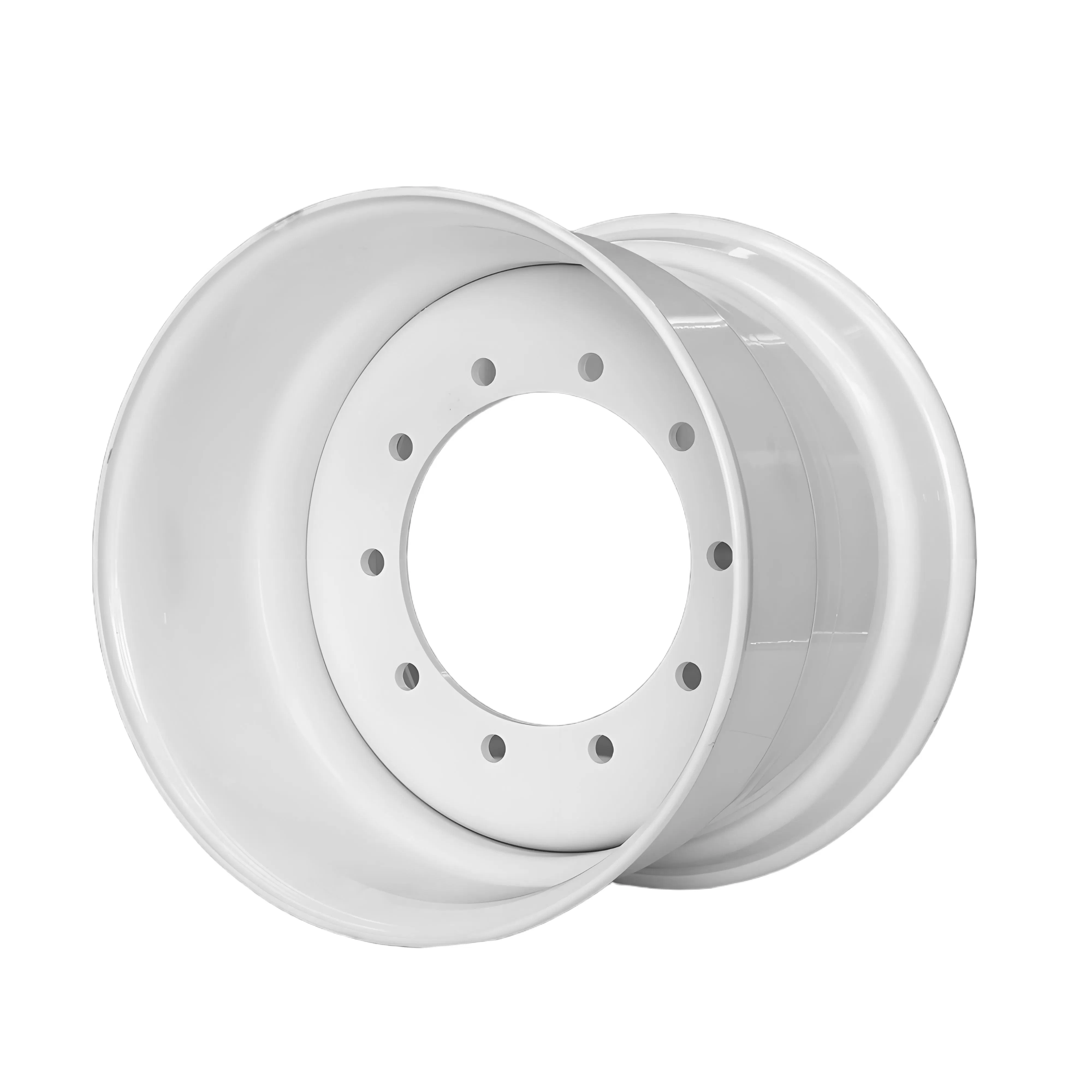

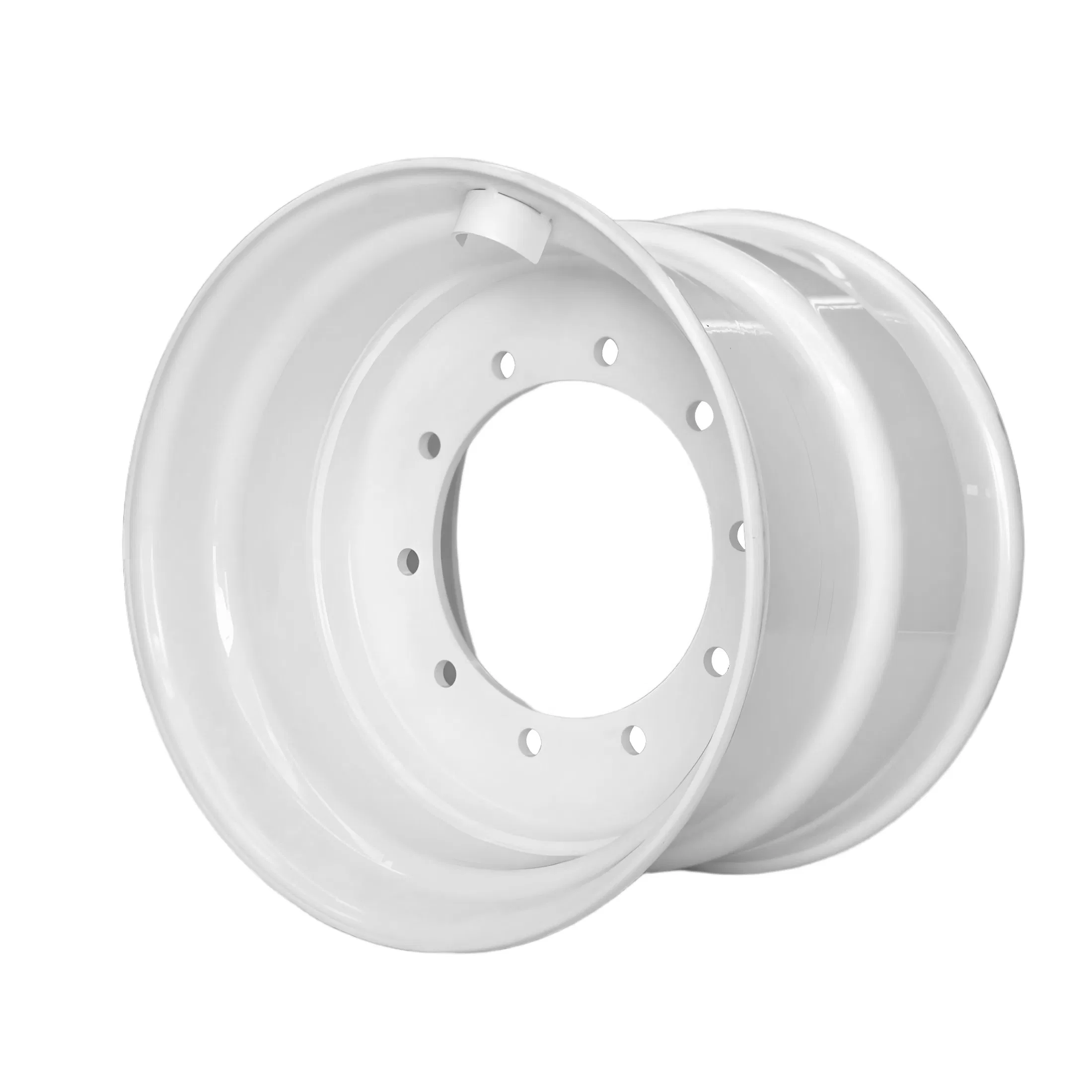

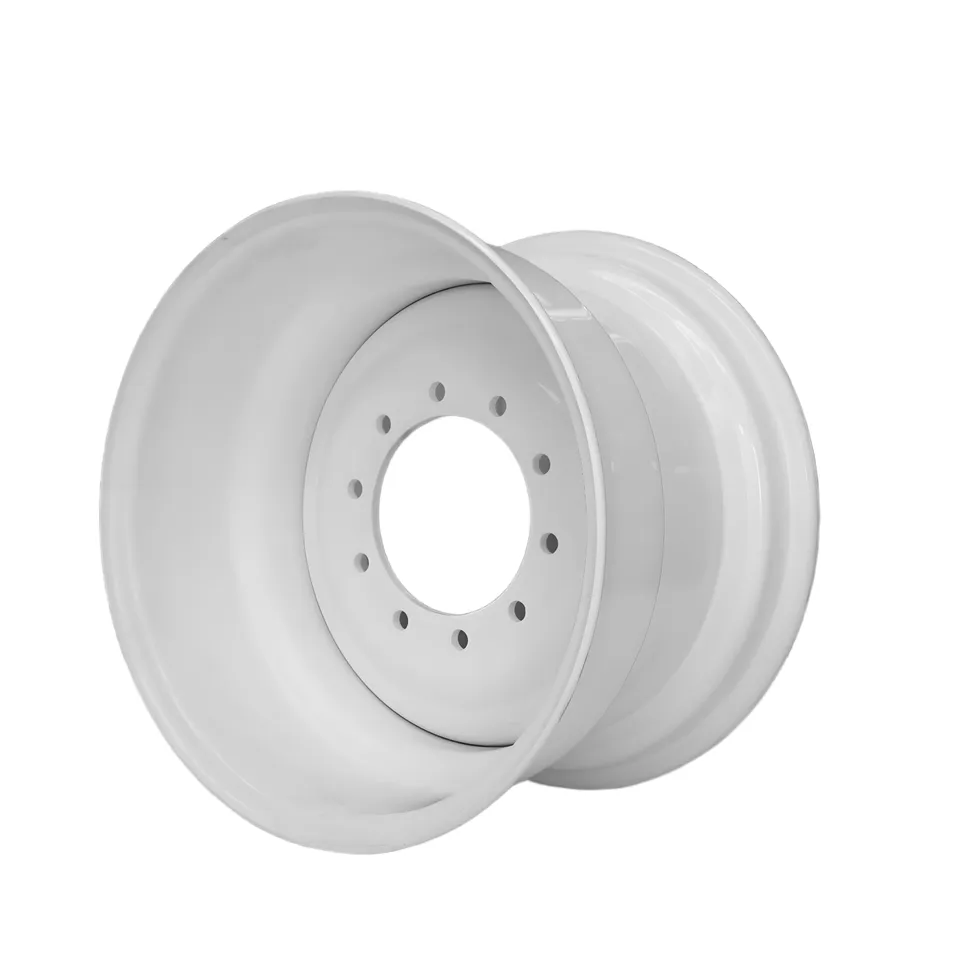

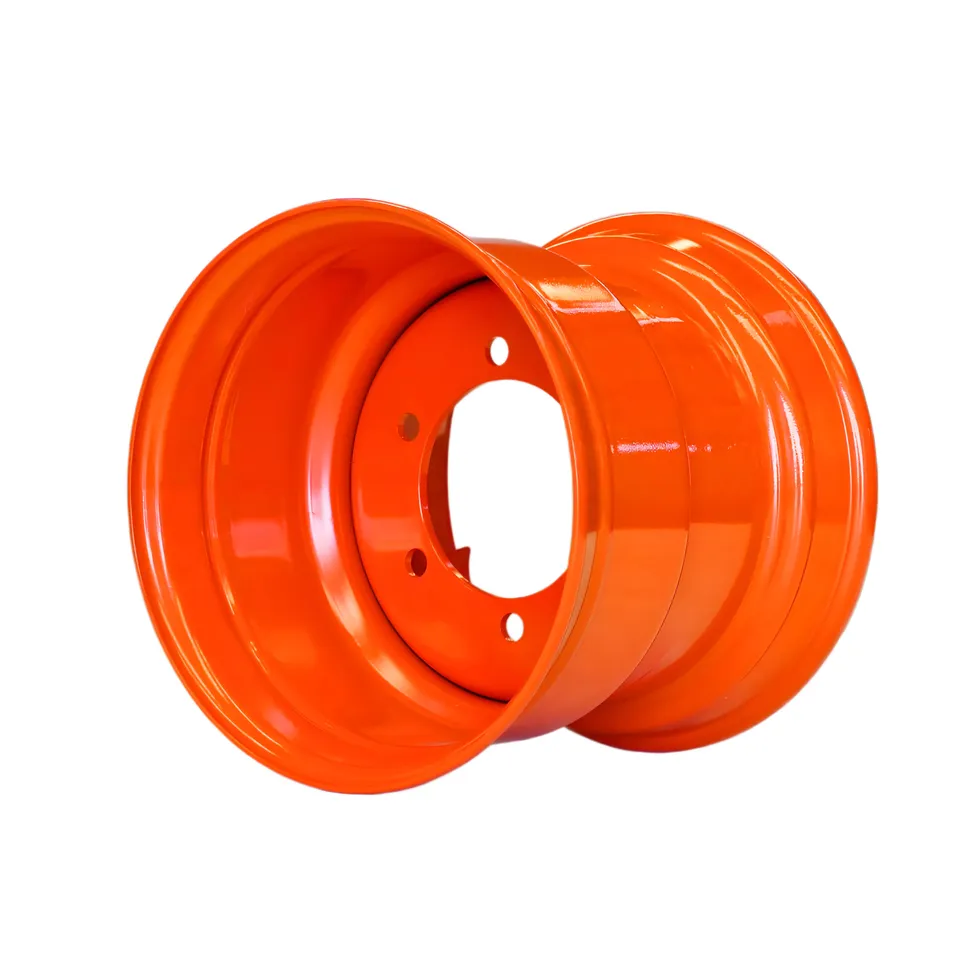

Agricultural machinery wheels are heavy-duty components specifically engineered for tractors, harvesters, and other farm equipment. These wheels provide superior load-bearing capacity, optimal traction in diverse field conditions, and enhanced durability for extended service life.
Primary use with tractors, harvesters, planters, sprayers, tillage equipment, grain carts, and various agricultural implements.
| Wheel DIA | Wheel Size | Tire Size | Center Hole (mm) | P.C.D (mm) | Bolt Hole | Hole DIA (mm) | Connection | Offset (mm) |
|---|---|---|---|---|---|---|---|---|
| 12 | 3.00D / 4.50E / 7.00 | 4.00-12 / 6.00-12 | 79 - 94 | 114.3 - 140 | 4 / 5 | 13 - 20 | Welding | -1 to 70 |
| 14 | 3.00D / 4.50J | 4.00-14 / 6.00-14 | 100.5 - 110 | 140 - 161 | 5 / 6 | 15 - 20 | Welding | 0 / 25 |
| 16 | 4.00E to W11L | 5.50-16 to 13/65-16 | 110 - 161 | 152 - 205 | 4 / 5 / 6 / 8 | 16.5 - 48 | Welding | 0 to 80 |
| 20 | 5.50F to W13 | 7.50-20 to 420/65R20 | 150 - 290.5 | 200 - 330 | 6 / 8 | 17 - 22 | Welding/Bolt | 0 to 122.5 |
