DrivePro Auto
DrivePro Auto
Specialized in manufacturing and exporting all kinds of tyres and wheels to all over the world. We supply wheel rims and tires, and are especially professional in truck wheel, agricultural wheel and assemblies and components for OTR wheel and engineering wheel with multi-pieces for earthmover.
Now available a wide range of Earthmover wheels with diameter from 20" to 63" for mine, underground, port and bridge, etc. The rim components such as bead bands, lock rings, side rings and wheel rims also can be supplied.
| Forklift wheels | Equipped with tyre | Bolt Hole No. | Bolt Hole Dia. | P.C.D (mm) | B.C.D (mm) |
|---|---|---|---|---|---|
| 6.5-10 | 23x9-10 | 5 | 15 | 145 | 110 |
| 8.0-12 | 27x10-12 | 10 | 26 | 225 | 176 |
| 6.50-15 | 8.25-15 | 6 | 32 | 220 | 165 |
| 6.50-15 | 8.25-15 | 10 | 32 | 290 | 240 |
| 7.00T-15 | 28x9-15 | 6 | 32 | 200 | 150 |
| 7.50V-15 | 250-15 | 8 | 32 | 200 | 150 |
| 7.00T-16 | 9.00-16 | 5 | 21.5 | 225 | 178 |
| 7.50-20 | 10.00-20 | 10 | 23 | 335 | 285 |

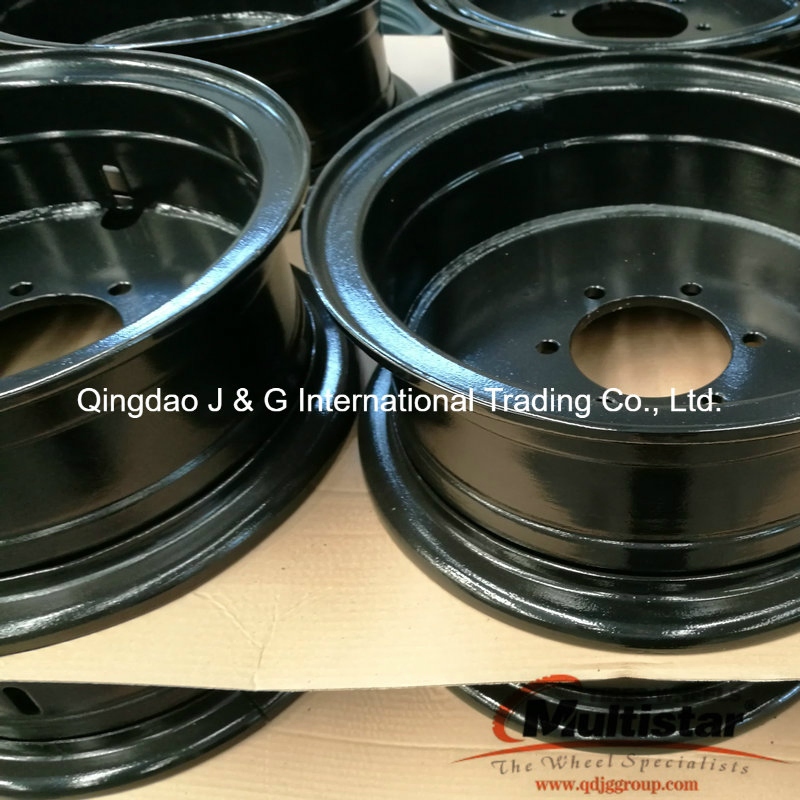

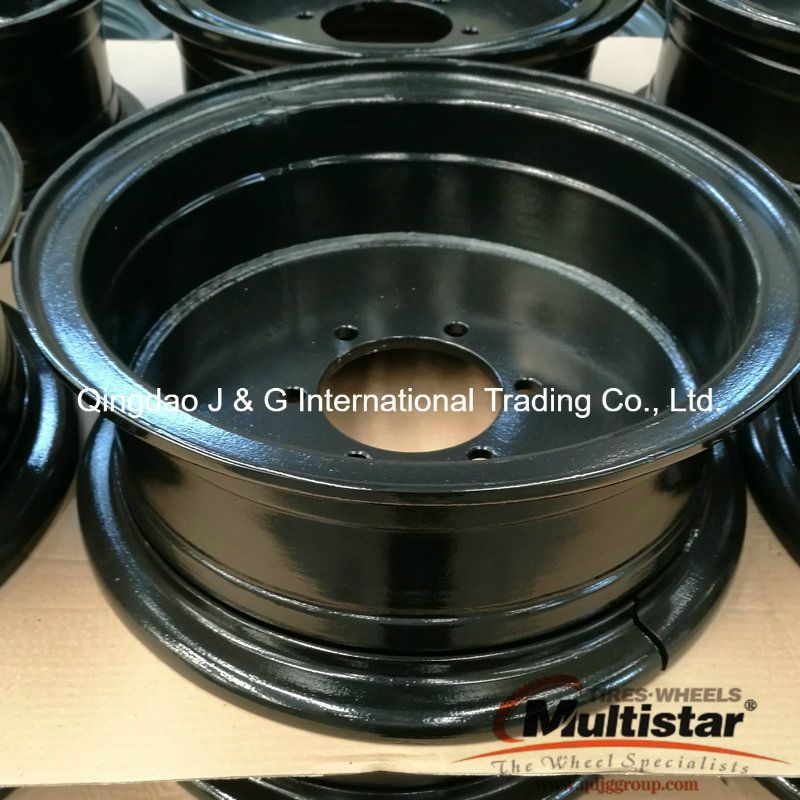

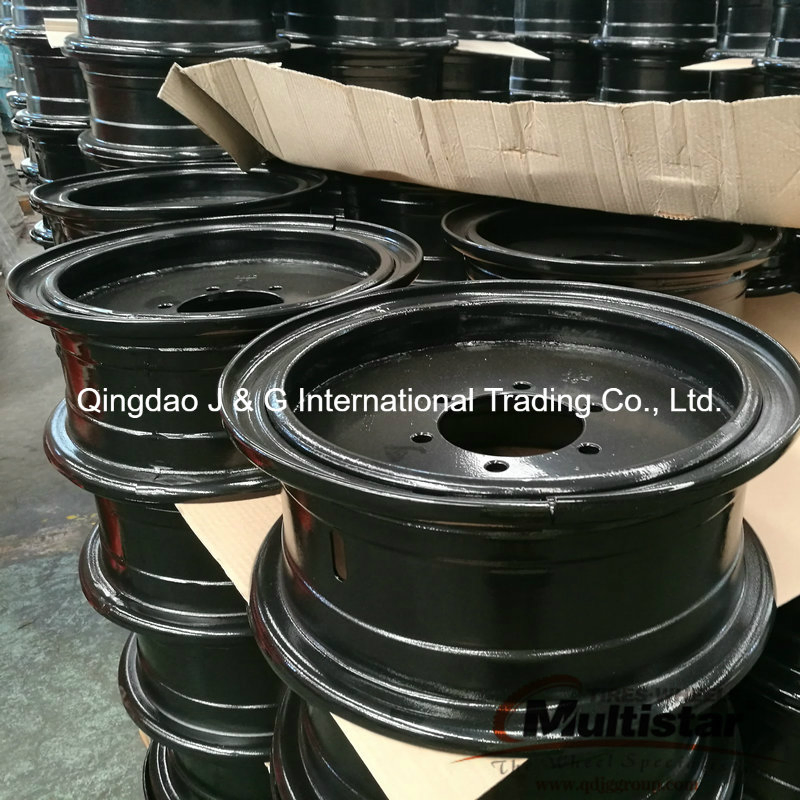

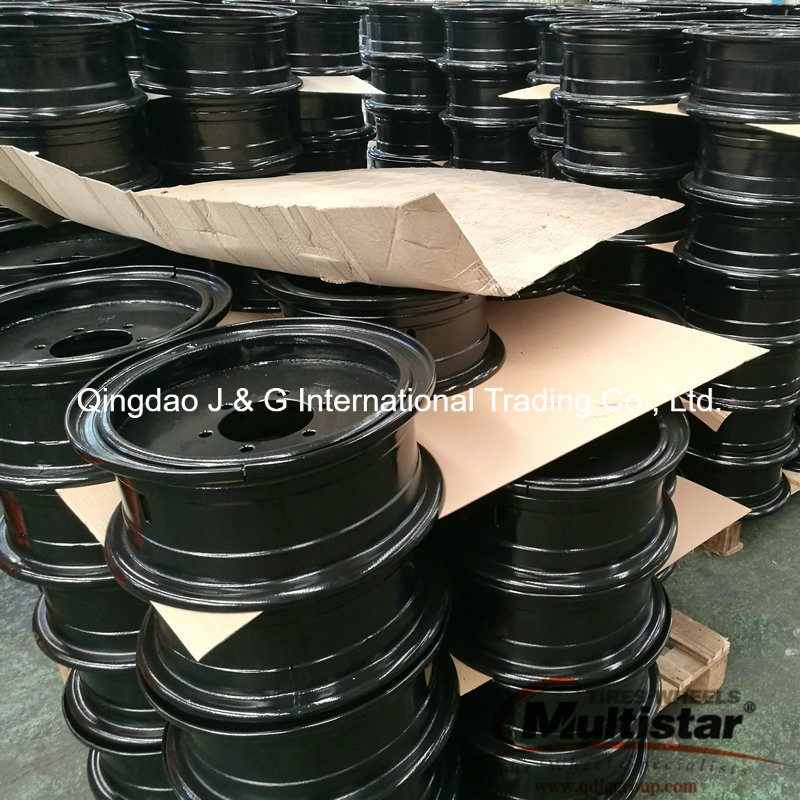

| Skid Steer Wheel Rim | Fitted tyre | Stud No. | Stud Dia. | P.C.D | C.B.D | ET |
|---|---|---|---|---|---|---|
| 8.25x16.5 | 10-16.5 | 6 | 15.7 | 205 | 140 | 30 |
| 8.25x16.5 | 10-16.5 | 8 | 16.5 | 203.2 | 152.5 | 9.5 |
| 9.75x16.5 | 12-16.5 | 8 | 20 | 203.2 | 152 | 25 |
| 9.75x16.5 | 12-16.5 | 6 | 20.5 | 190 | 140 | 0 |
