Basic Specification
Model NO.25-19.50/2.5
MaterialSteel
TypeRim
Wheel Hub Diameter25''
FinishingE-Coated, Painting Silver/White/Yellow
CertificationISO, VIA, CE, TUV, DOT
Logistics Details
Transport Packagein Pallets
HS Code870870
Production Capacity1000PCS/Month
Package Size120.00cm * 40.00cm * 40.00cm
Package Gross Weight50.000kg

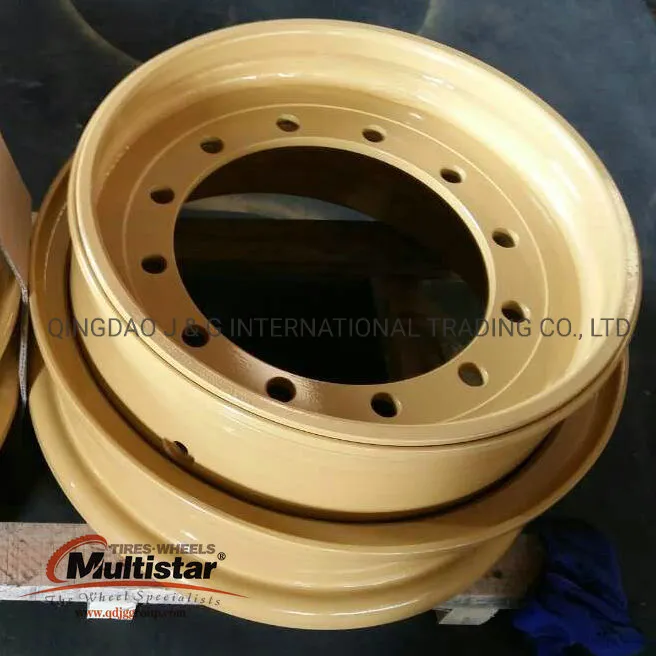

Product Features
✓

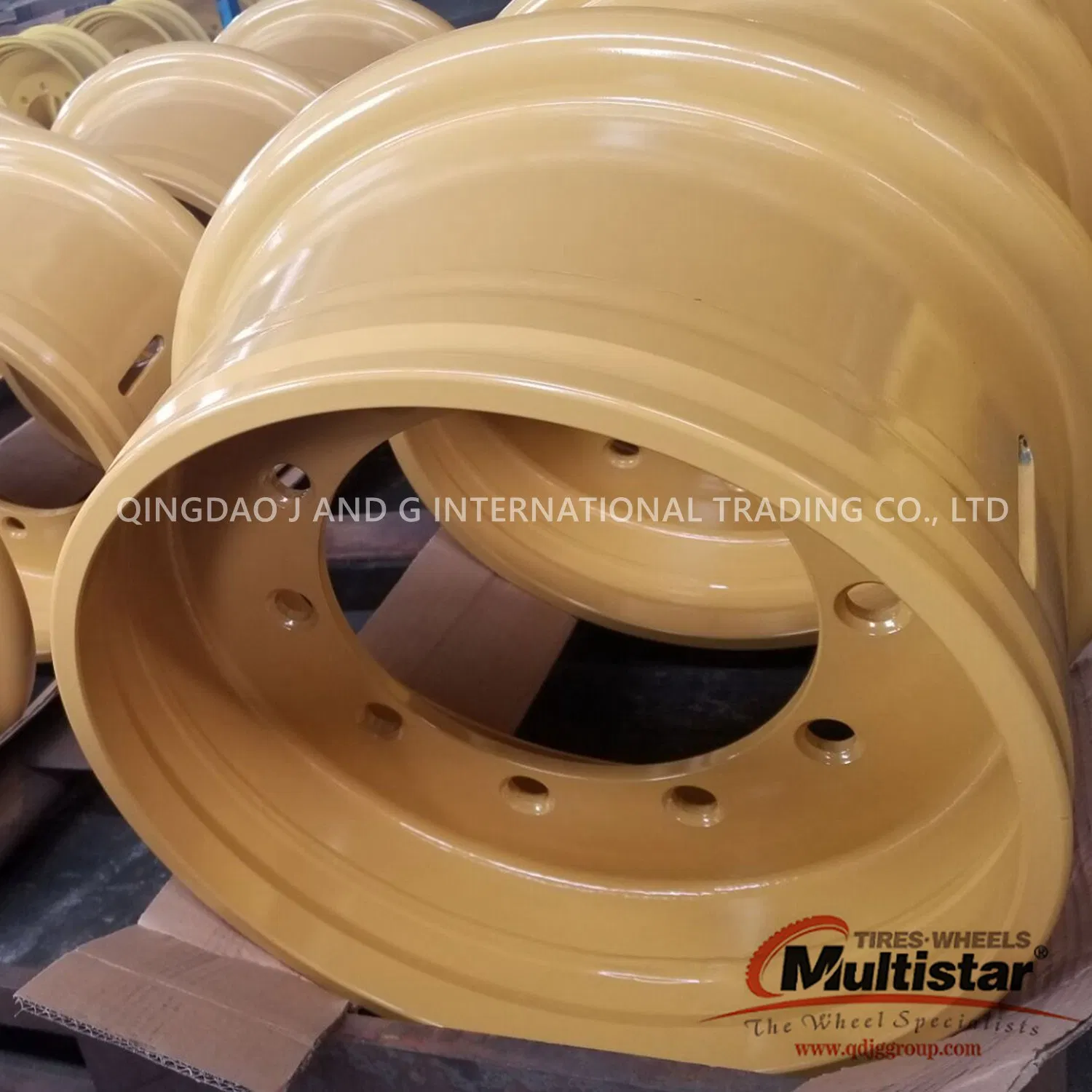

Rim Size: 25-19.50/2.5 fitted for 23.5-50 tires.
✓
Valve Compatibility: Both tube and tubeless types are available.
✓

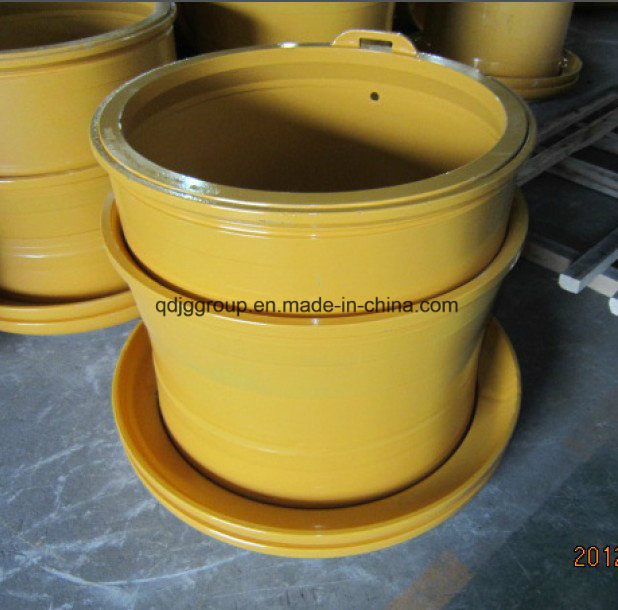

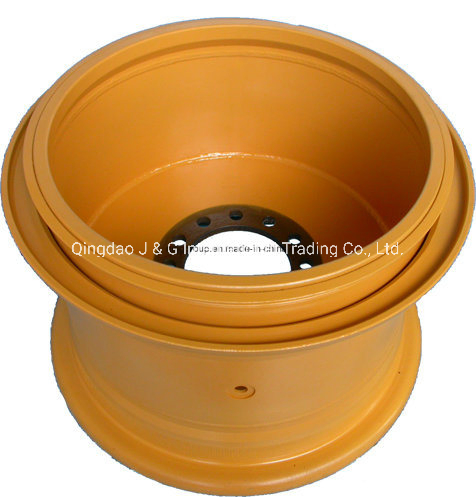

Versatile Structure: Available in 3-PCS, 5-PCS, Rim only, or Rim with disc.
✓
Customization: OEM Service and customized colors (RAL1028, RAL9006, etc.) available.
✓

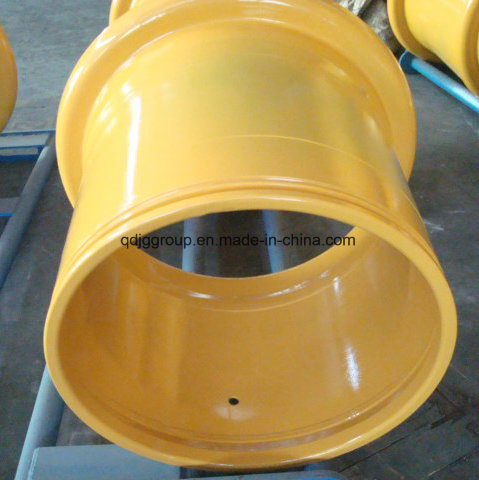

Application: Designed for Earthmovers and Construction equipment like Large Dump Trucks.
Relative Rim Dimensions (25")
| Rim Size |
Fitted Tyre |
Bolt Hole |
PC Dia |
Center Hole |
Offset/ET |
| 25-8.50/1.3 | 13.00-25 | 10-24 | 335 | 281 | -10 |
| 25-9.50/1.7 | 14.00R25 | 10-27 | 335 | 281 | 61 |
| 25-10.00/1.5 | 14.00-25 | 10-24 | 335 | 281 | 80 |
| 25-11.25/2.0 | 16.00-25 | 10-32.5 | 335 | 281 | 0 |
| 25-13.00/2.5 | 18.00-25 | 10-31 | 480 | 430 | 65 |
| 25-14.00/2.0 | 17.50-25 | 10-26 | 335 | 281 | 40 |
| 25-19.50/2.5 | 23.50-25 | 10-27 | 335 | 281 | 55 |
| 25-22.00/3.0 | 26.50-25 | 20-22 | 425 | 370 | -14 |
| 25-25.00/3.5 | 29.50-25 | 10-26 | 335 | 281 | 51 |
Steel OTR Wheel Rim Range
Light & Medium Duty:
• 20" Series: 20-8.5/1.7 to 20-13.00/1.0
• 25" Series: 25-8.5/1.5 to 25-19.50/2.5
• Port Machine: 24", 25", 33", 49"
Heavy Duty & Large Mining:
• 33" Series: 33-13.00/2.5, 33-28.00/3.5
• 51" Series: 51-22.00/4.5 to 51-40.00/4.5
• 57" Series: 57-27.00/6.0 to 57-36.00/6.0
• 63" Series: 63-41.00/5.0, 63-44.00/5.0

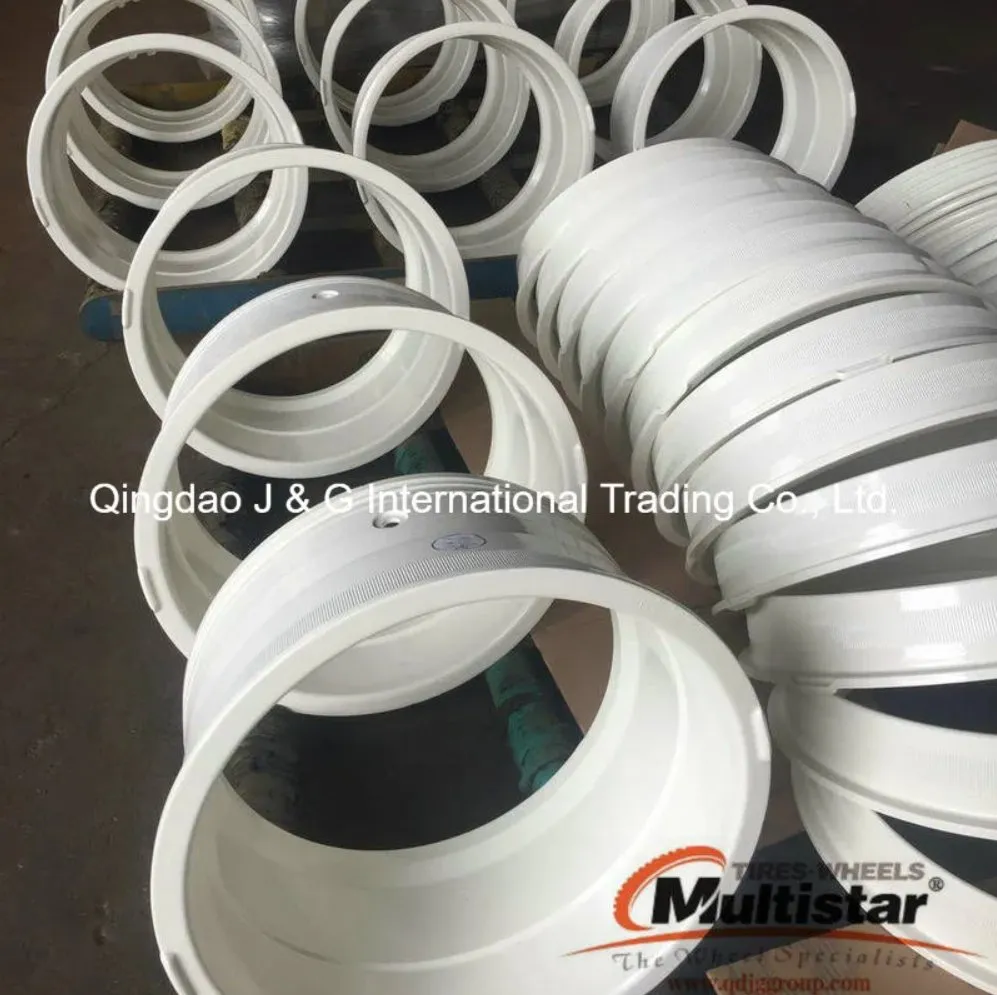

Available Components

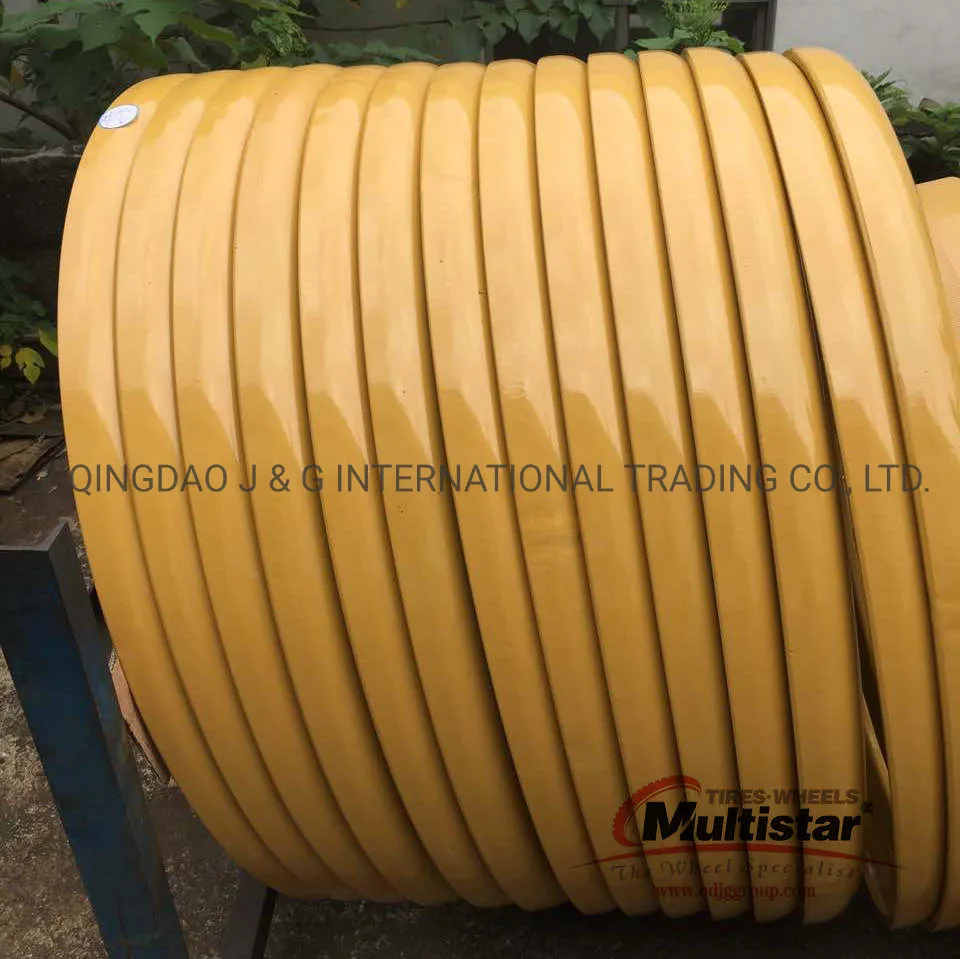

We provide full support for wheel assemblies including: Rim base, bead seat band, lock ring, side ring/flange, drive key, drive pocket, gutter section, and back section.
Why Partner With Us
1000+ units of tyres and 3000+ rims on daily stock.
600+ wheel rim drawings for original OTR equipment.
15+ years experience servicing OE manufacturing clients.
24/7 after-sales service and support.
Frequently Asked Questions
What applications are these OTR steel rims suitable for?
They are specifically designed for Earthmovers, construction equipment, large dump trucks, and port machinery.
Do you offer both tube and tubeless rim types?
Yes, our rims are available in both tube and tubeless valve hole configurations to meet your specific tire requirements.
Can I request a custom color for my wheel rims?
Absolutely. While standard colors include Silver, White, and Yellow, we can provide customized RAL colors like RAL1028 or RAL9006 upon request.
What certifications do your products hold?
Our wheel rims are manufactured to meet high standards and carry certifications including TUV, DOT, ISO, VIA, and CE.
Are individual wheel components available for purchase?
Yes, we provide individual components such as rim bases, bead seat bands, lock rings, side rings, and flanges.
What is the typical production capacity?
We have a production capacity of approximately 1000 pieces per month to ensure steady supply for large-scale projects.
