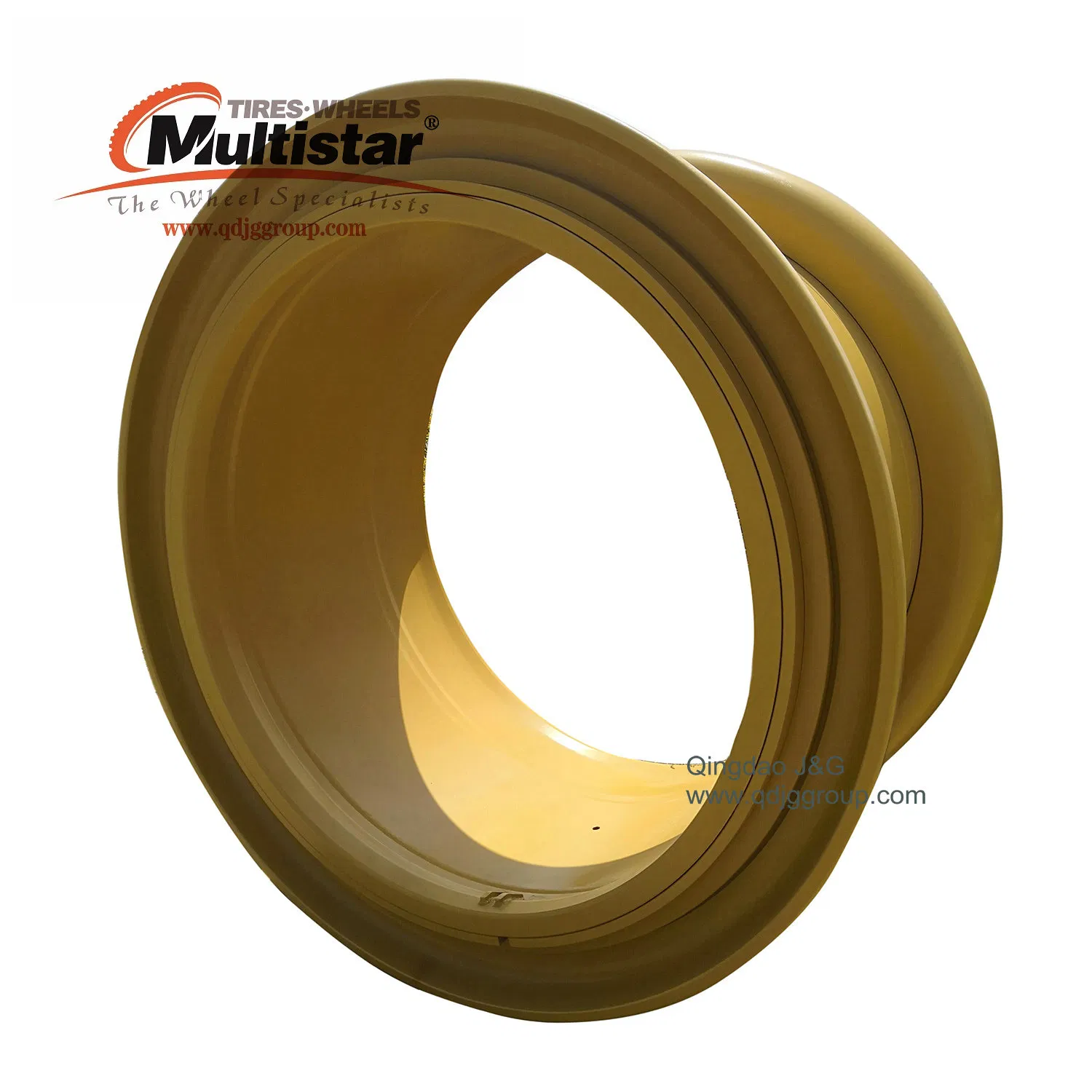

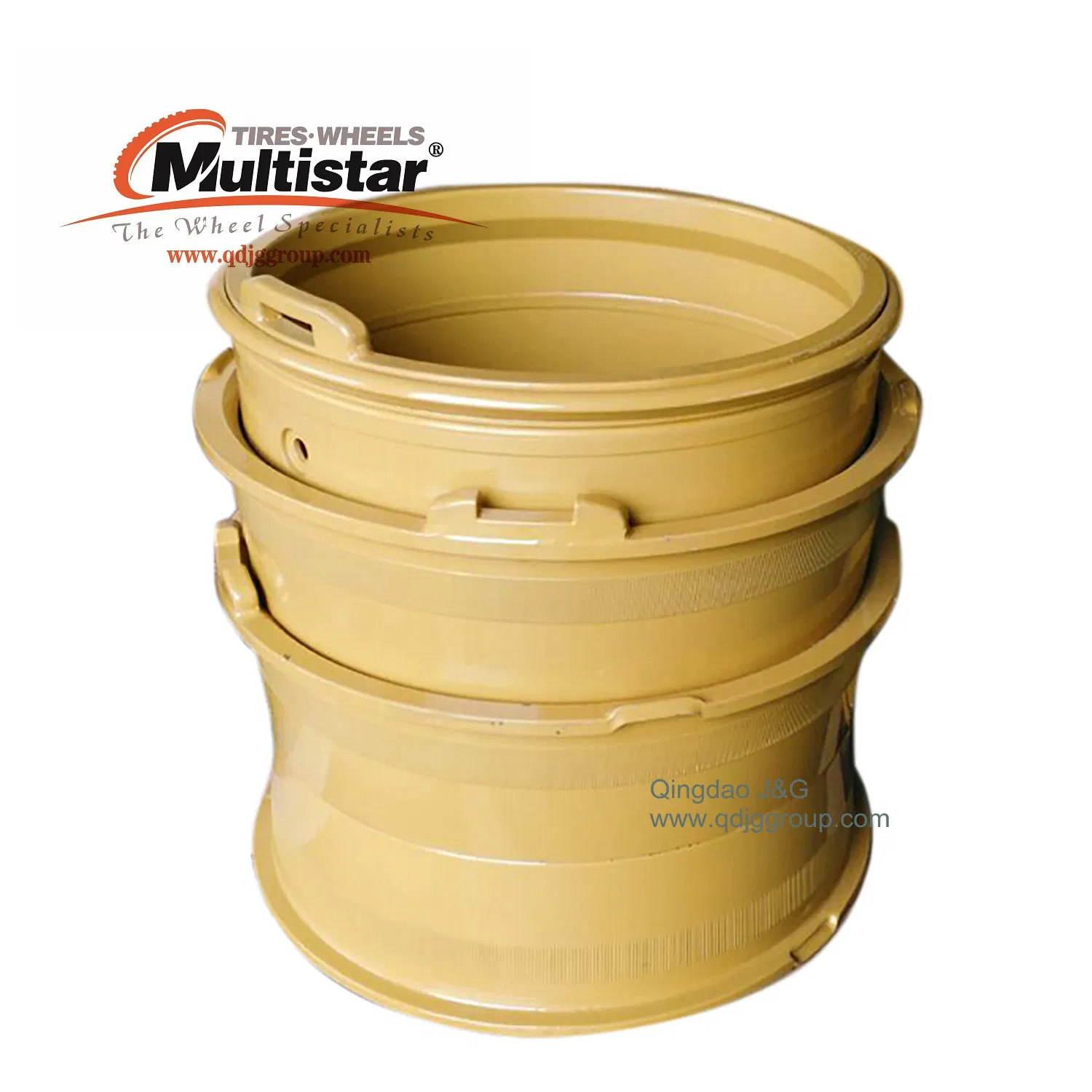

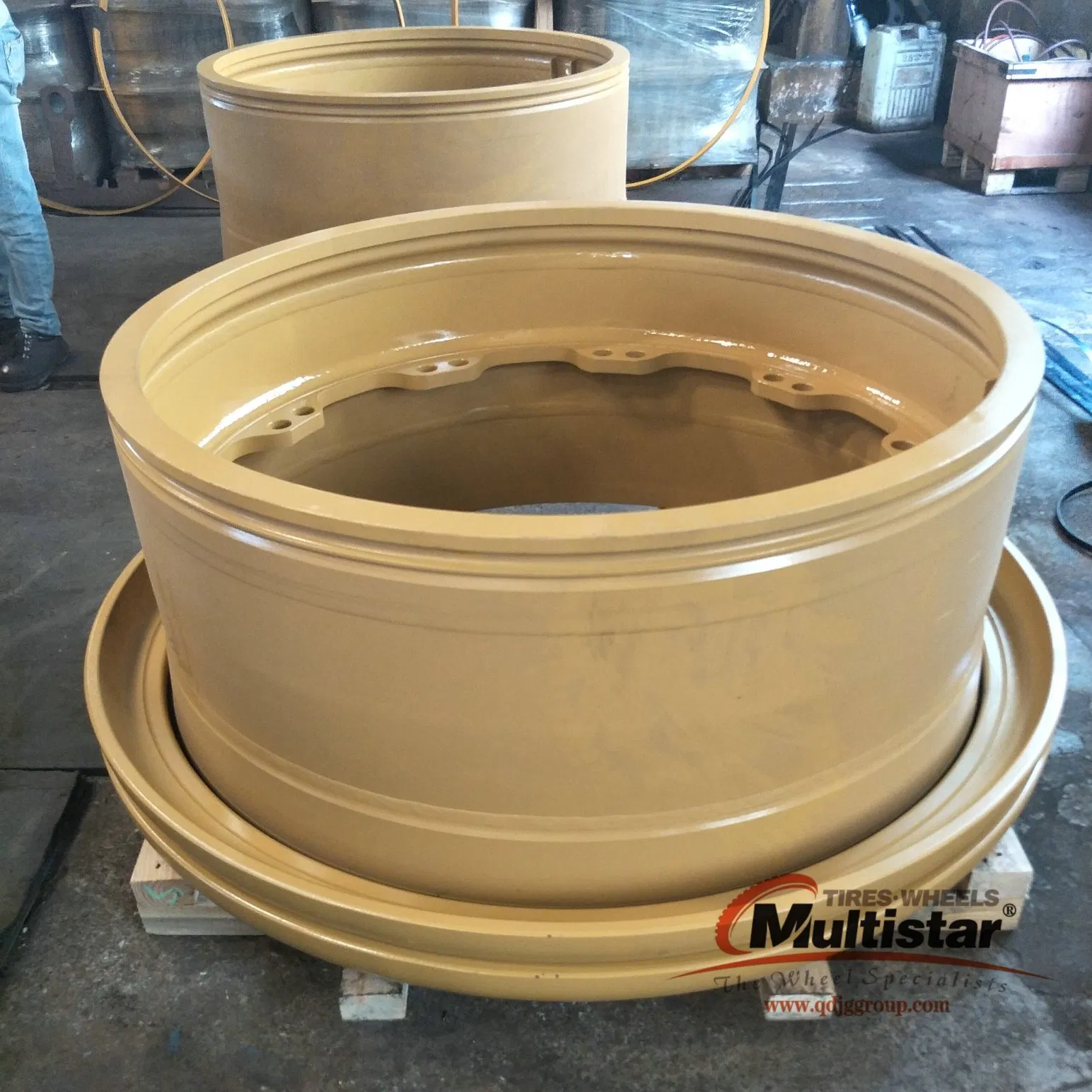

Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels
Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels
Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels
Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels
Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels
1 / 5
Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels
Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels
Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels
Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels
Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels

Articulated Dump Truck Wheels OTR Wheel Rim Constrcution Wheels

Customization: Available
After-sales Service: 3 Years
Warranty: 1 Year
Send Inquiry

Product Description

Basic Information
Model NO.57-29.00, 49-19.5, 45-36.00
MaterialSteel
TypeRim
Wheel Hub Diameter>25'
CertificationISO
Specification49' 51' 54' 57' 63' 61'
OriginChina
HS Code87087090
Capacity10,000 PCS/Year
Package Size1190.00cm * 500.00cm * 1190.00cm
Product Description & Range

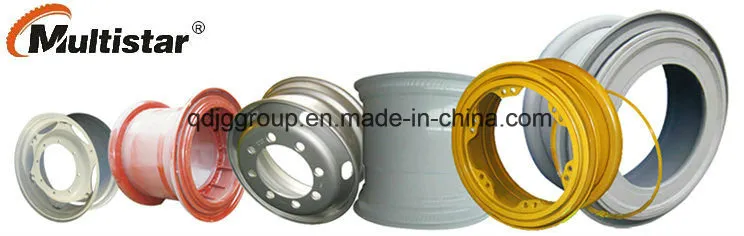

OTR Wheel Rim Range

Steel OTR Wheel Rim Range Overview:

Light Duty (3 piece): 24" to 25" series
Medium Duty (Large): 39", 45", 49" series
Medium Duty (3/5 piece): 20", 21", 22", 23", 25", 26" series
Heavy Duty Split: 21" and 25" series
Heavy Duty (3/5 piece): 15", 20", 24", 25", 29", 33", 35" series
Heavy Duty Large: 51", 57", 63" series

Quality Control Standards:

Profile Section Parts:

Rolling Section with high strength and reliable quality.
Materials for gutter, back section, bead seat band, and flanges are made from Q345D.
Locking material is crafted from 50Mn.

Manufacturing Process:

Machined using state-of-the-art CNC machines for precision.
Ultrasonic inspection for all weld beads; Magnetic and X-ray testing used for key beads as required.
Sandblasting cleaning prior to painting line entry.
Epoxy resin electrophoretic primer/base coat with OEM specification topcoat (powder and wet).
Product Parameters
DiaWheel SizeTire Size DiaWheel SizeTire Size DiaWheel SizeTire Size
20"20-7.00/1.79.00-20 25"25-14.00/2.017.50-25 35"35-17.00/3.524.00-35
20"20-8.5/1.712.00-20 25"25-19.50/2.523.50-25 39"39-32.00/4.540/65-39
21"21-11.25/2.0Solid Tyre 29"29-17.00/3.524.00-29 45"45-36.00/4.545/65R45
24"24-10.00/1.714.00-24 33"33-13.00/2.518.00-33 49"49-19.50/4.027.00-49
25"25-13.00/2.518.00-25 57"57-29.00/6.040.00R57 63"63-44.00/5.059/80R63
Detailed Photos

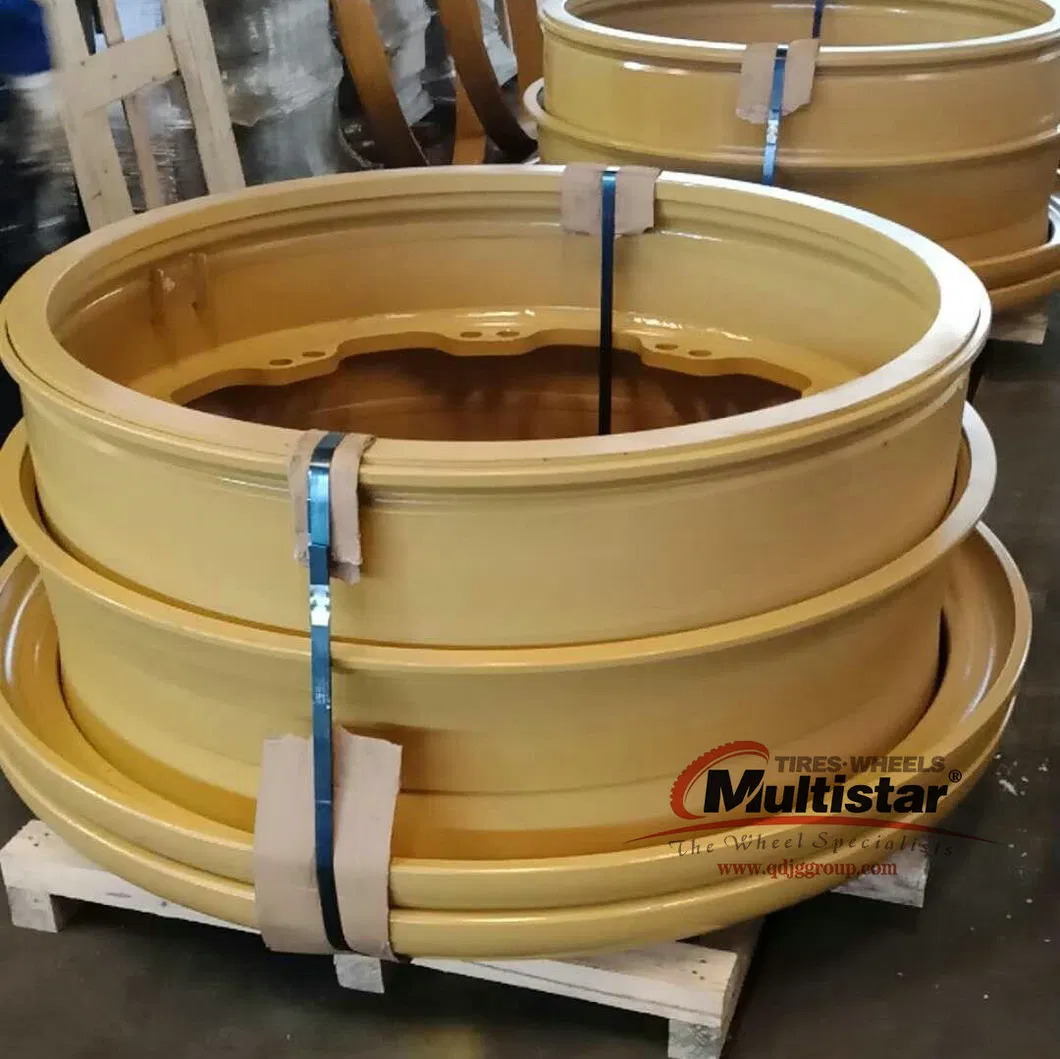

Wheel Detail 1
Wheel Detail 2

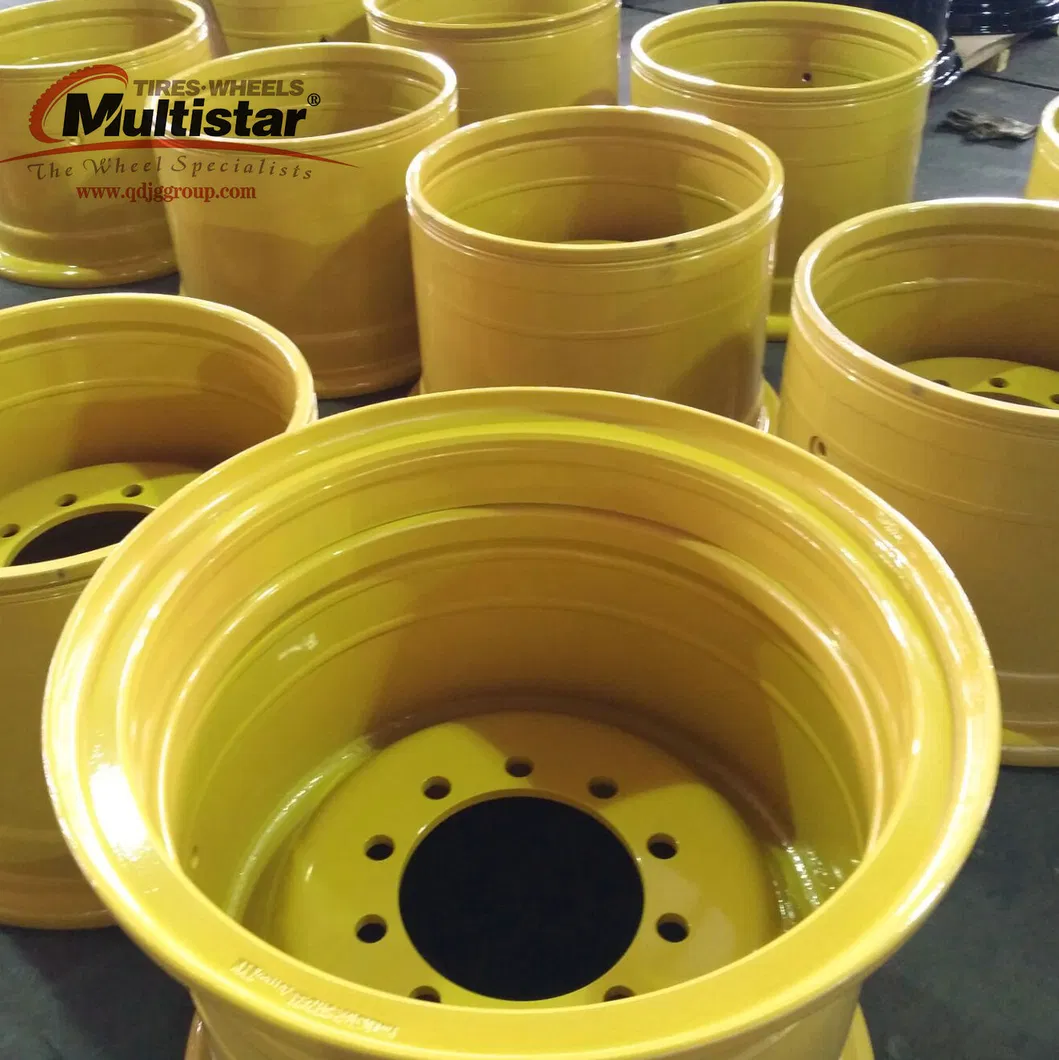

Wheel Detail 3

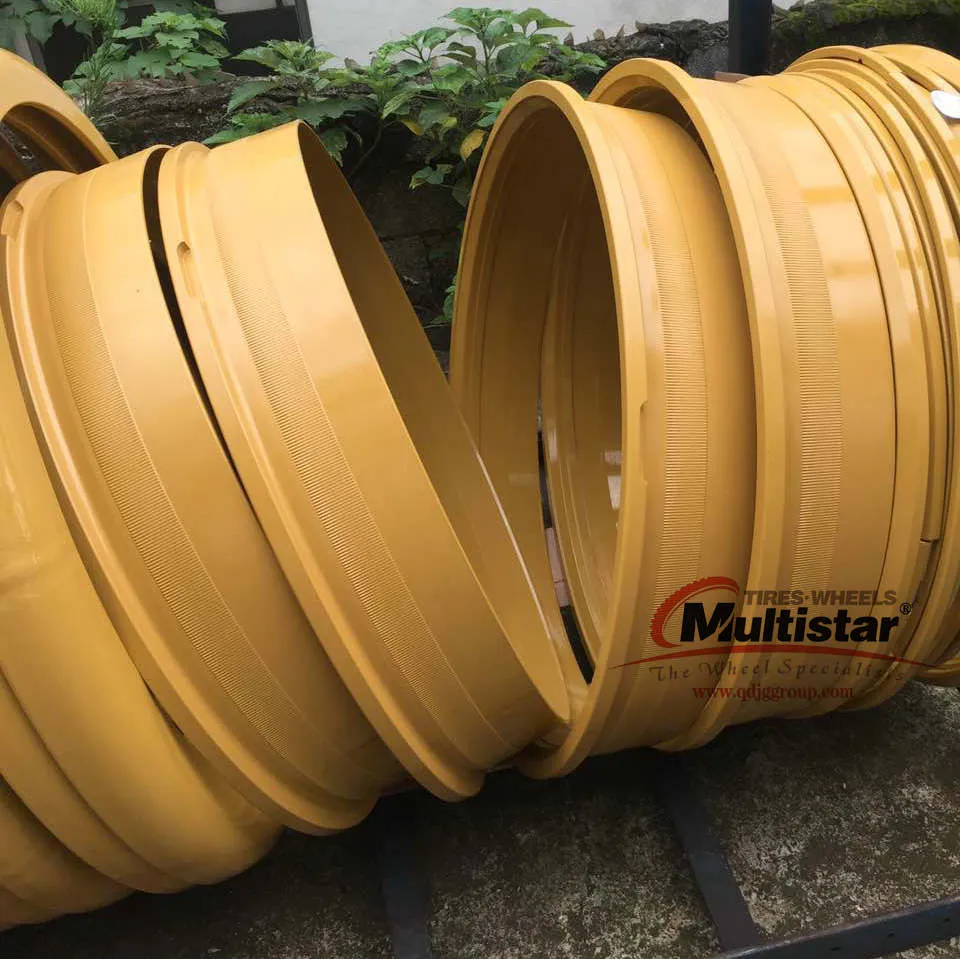

Wheel Detail 4

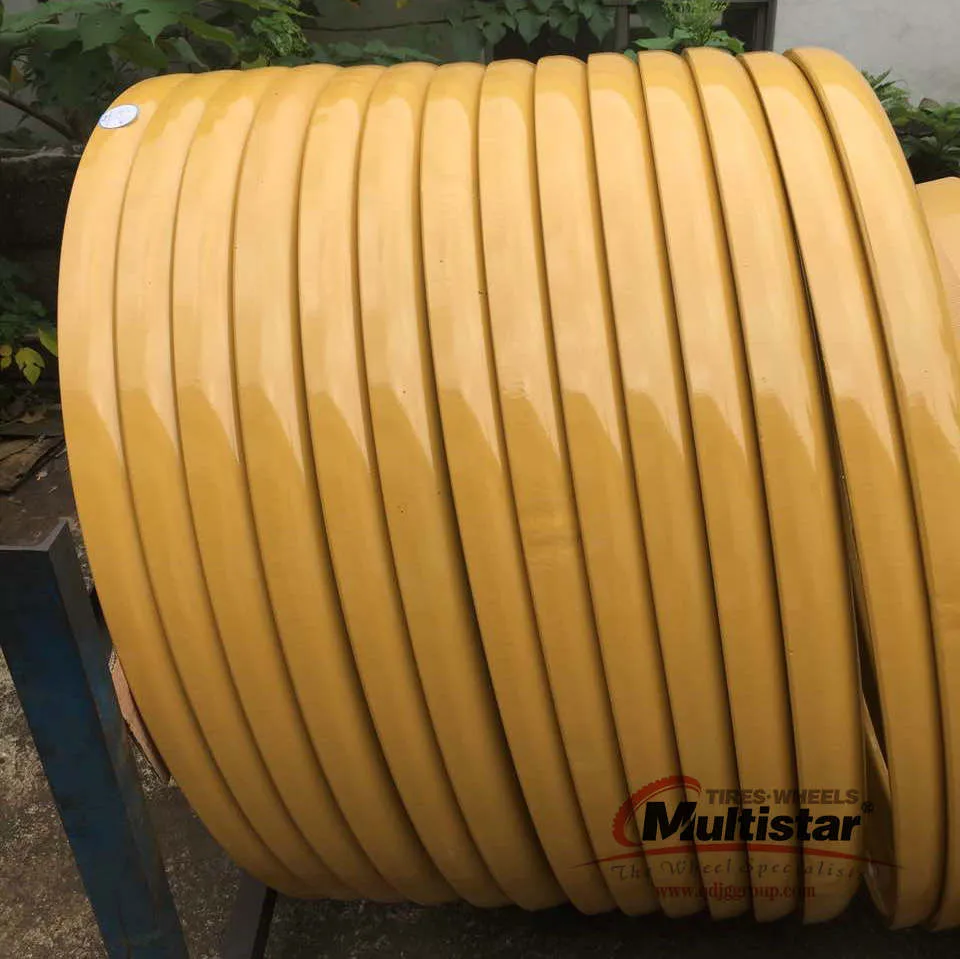

Wheel Detail 5
Certifications
ISO Certification
Frequently Asked Questions
What materials are used in the construction of these OTR wheel rims?
The rims are constructed from high-quality steel. Specifically, Q345D is used for the gutter section, back section, bead seat band, and flanges, while 50Mn is utilized for the locking components.
What range of wheel sizes do you offer?
We offer a comprehensive range from 20" series up to 63" series, covering light duty, medium duty, and heavy-duty applications for various construction and mining vehicles.
How do you ensure the quality of the welding process?
All weld beads undergo ultrasonic detection. Additionally, magnetic and X-ray inspections are performed on key weld beads to ensure maximum structural integrity and safety.
What kind of surface treatment and painting is applied?
Each wheel is sandblasted before painting. We apply an epoxy resin electrophoretic primer or base coat followed by a high-quality topcoat (both power and wet) that meets OEM specifications.
Are your manufacturing processes automated?
Yes, key parts such as the gutter section, back section, and flanges are machined using advanced CNC technology to ensure high precision and consistency across all units.
What certifications do these wheel rims hold?
Our OTR wheel rims are manufactured under strict quality controls and hold ISO certification, ensuring they meet international standards for industrial use.
