Product Description
As a one-stop professional supplier, we provide a wide range of tires, wheels, and axles. We deliver superior value through focus on innovation, technology, and cost-efficient manufacturing. We are especially professional in agricultural wheels and tires for trailers, tractors, harvesters, combines, balers, spreaders, and feed mixers.
Key Features:

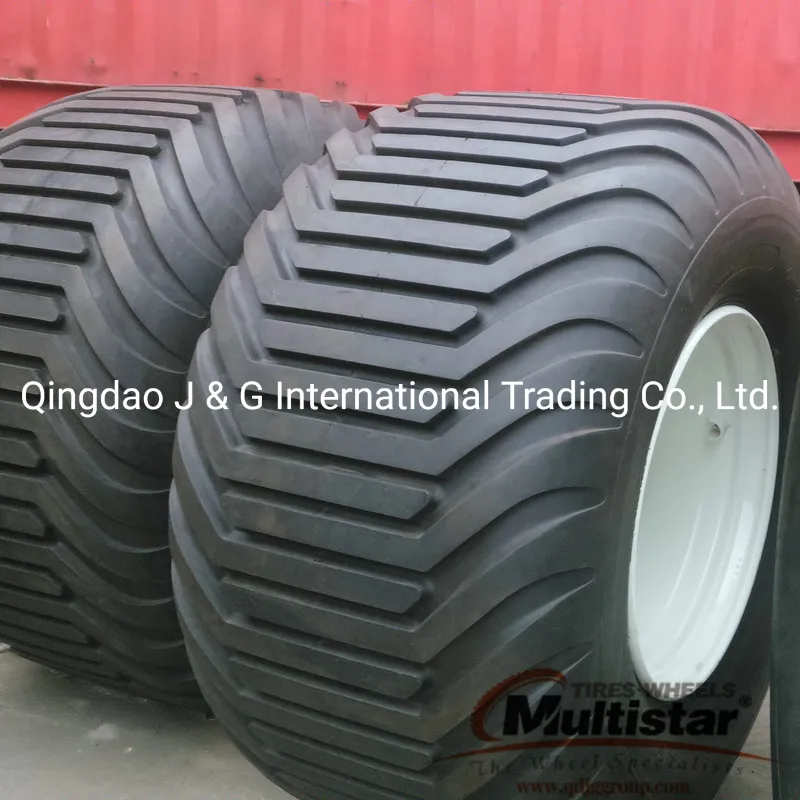

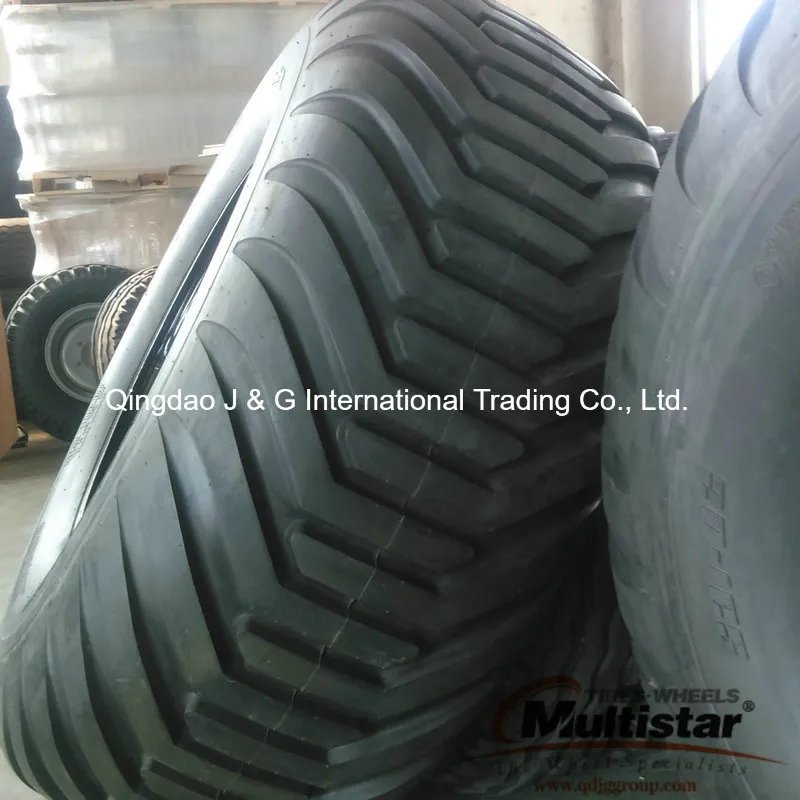

1. Specially designed deep lugs provide high traction, self-cleaning properties, and long service life under the hardest working conditions.
2. High-quality raw materials and a strong nylon casing provide excellent stability and guard against mechanical failures.
| Tyre Size |
Pattern |
PR |
Type |
Fitted Rim |
O.D (mm) |
S.W (mm) |
| 500/45-22.5 | TRC-03 | 16 | TL | 16.00x22.5 | 1070 | 550 |
| 500/60-22.5 | TRC-03 | 16 | TL | 16.00x22.5 | 1190 | 500 |
| 600/50-22.5 | TRC-03 | 16 | TL | 20.00x22.5 | 1170 | 600 |
| 650/50-22.5 | TRC-03 | 16 | TL | 20.00x22.5 | 1125 | 645 |
| 700/55-22.5 | TRC-03 | 16 | TL | 24.00x22.5 | 1238 | 700 |
| 800/45-26.5 | TRC-03 | 16 | TL | 28.00x26.5 | 1343 | 800 |
| 650/65-30.5 | TRC-03 | 16 | TL | 20.00x30.5 | 1650 | 650 |

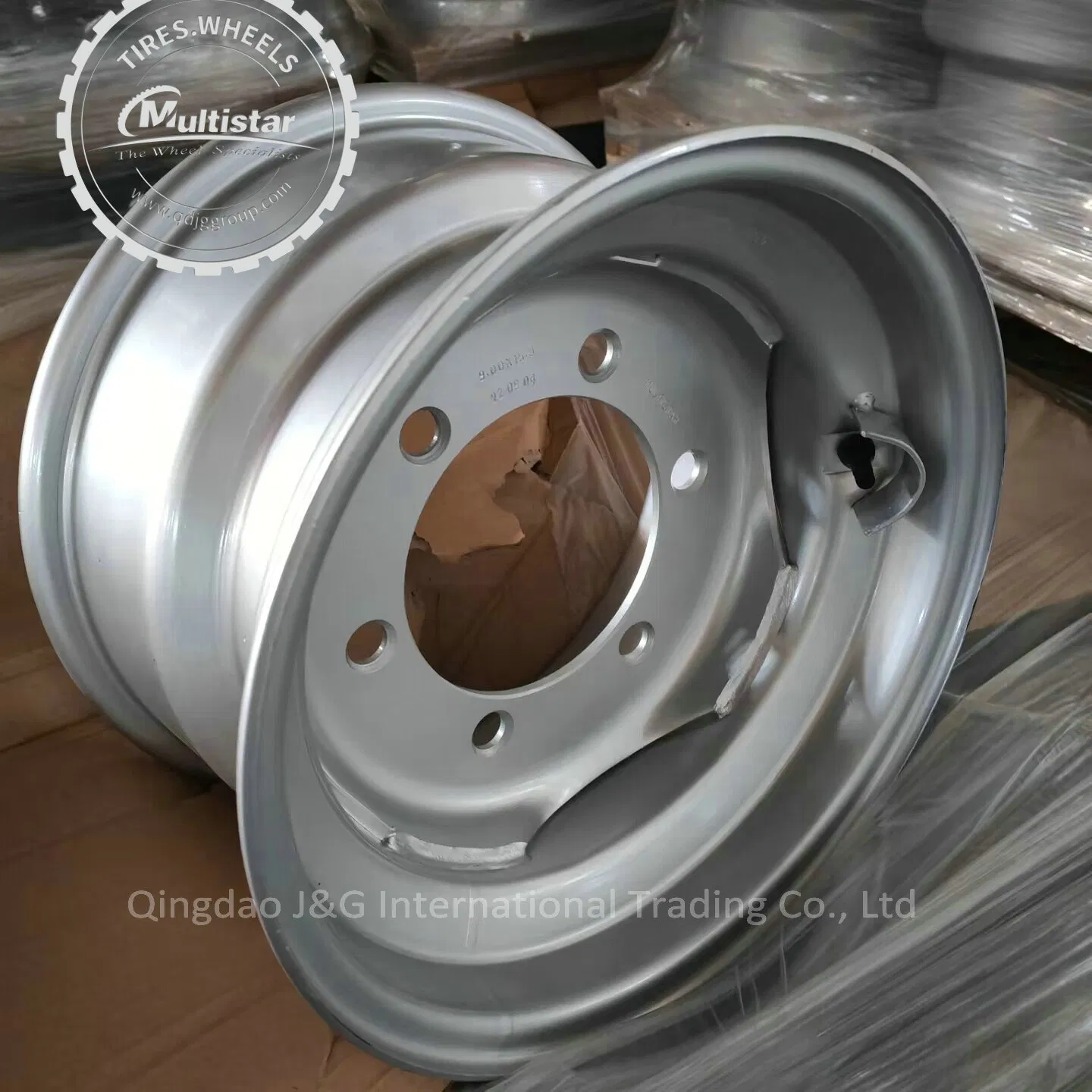

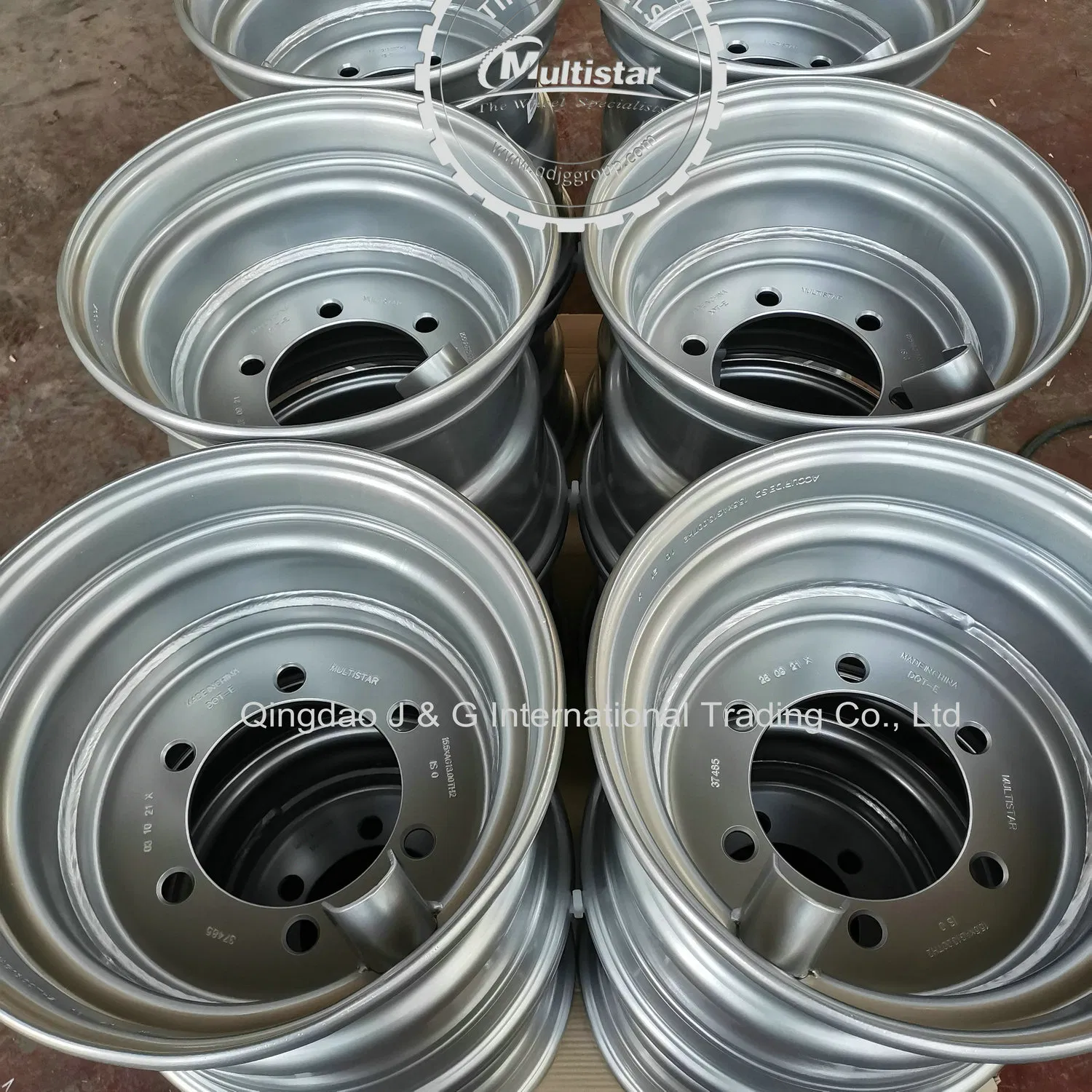

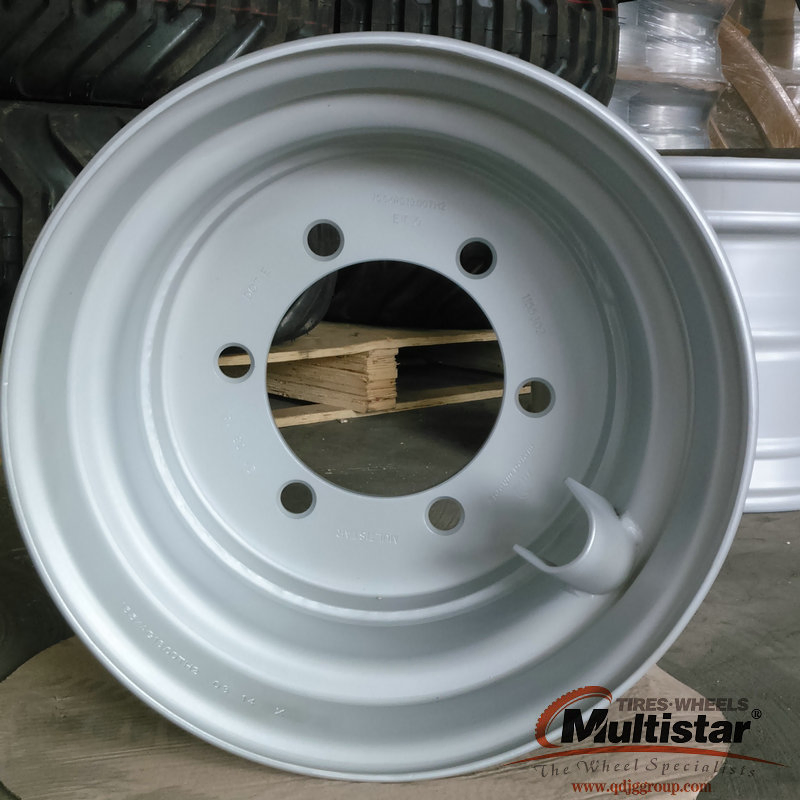

| Wheel Size |
Fitted Tyre |
Bolt Hole |
P.C.D |
Centre Hole Dia. |
Thickness (mm) |
| Num |
Dia. |
Rim |
Disc |
| 30.5x20.00 |
650/65-30.5 |
10 |
27 |
335 |
281 |
7 |
15 |
| 30.5x28.00 |
850/50-30.5 |
10 |
27 |
335 |
281 |
7 |
15 |

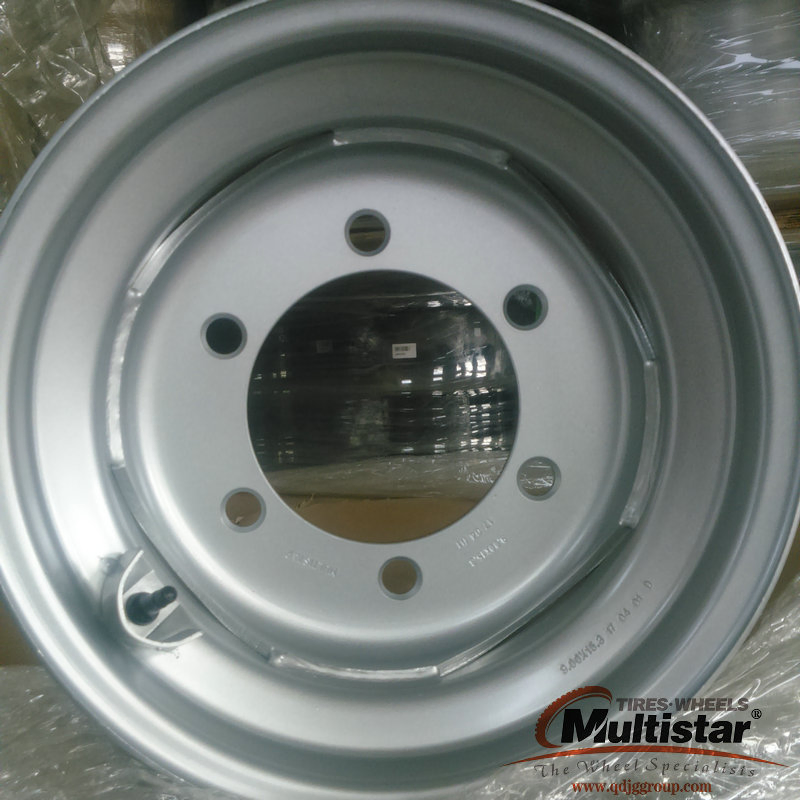

Other Available Agricultural Rim Sizes:
7.00x12
10.50Ix12
9.00x15.3
13.00x17
16.00x17
11.75x22.5
20.00x22.5
24.00x26.5
28.00x30.5
DW20x26
DW27x32
Frequently Asked Questions
Which tire sizes are compatible with the 9.00x15.3 wheel rim?
This rim is specifically designed to fit 10.0/75-15.3, 11.5/80-15.3, and 12.5/80-15.3 agricultural tires.
Can you provide the complete tire and wheel assembly?
Yes, we can supply tires and wheels as a complete assembly, ready for installation on your equipment.
What quality certifications do your agricultural wheels have?
Our wheels are manufactured under strict quality standards and carry ISO and DOT certifications to ensure safety and durability.
What kind of agricultural machinery are these products suitable for?
They are ideal for a wide range of machinery including tractors, trailers, harvesters, balers, spreaders, and feed mixers.
What are the main advantages of the deep lug tire design?
The deep lug design provides superior traction in soft soil, excellent self-cleaning capabilities, and an extended service life in tough conditions.

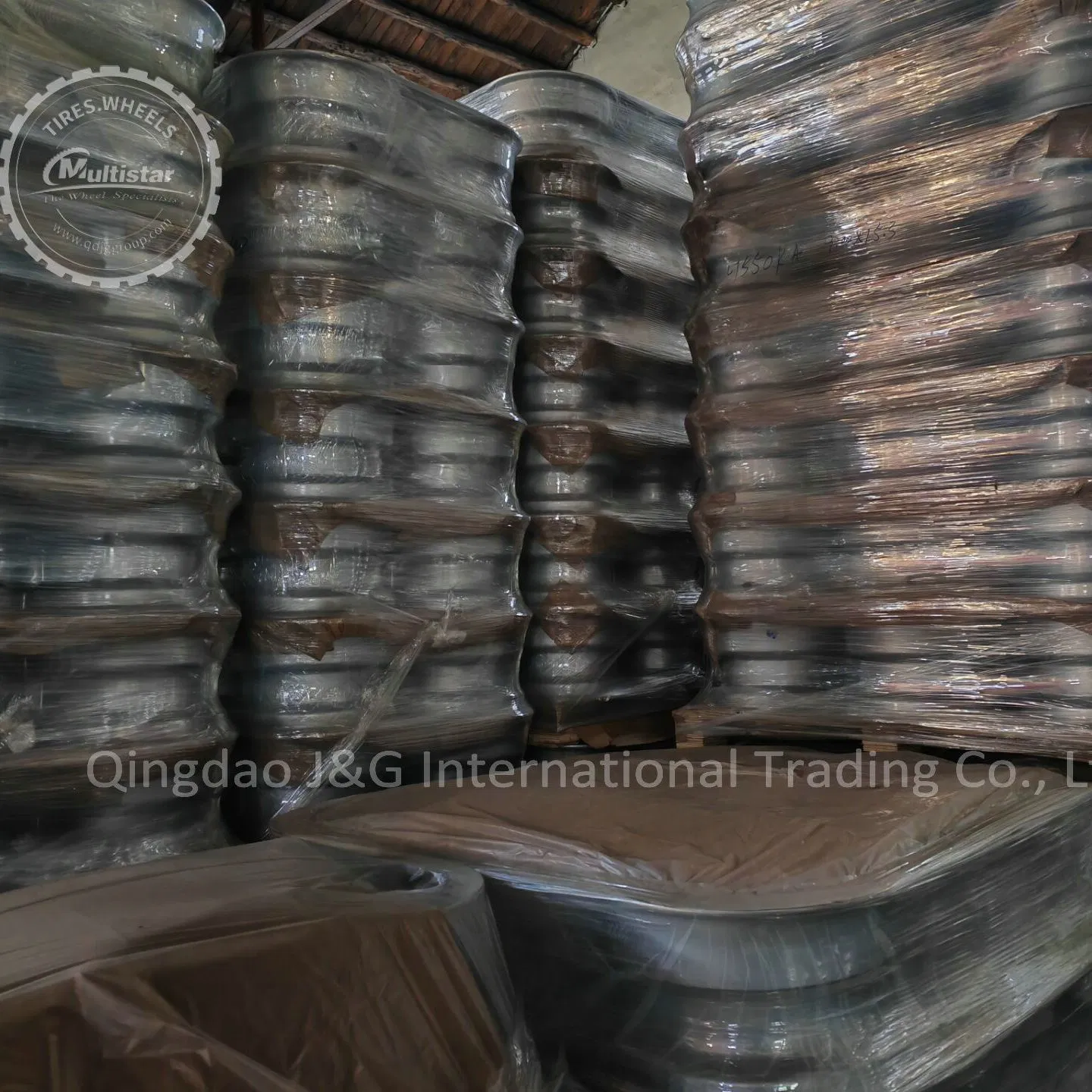

How are the products packaged for long-distance transport?
Products are securely packed on heavy-duty pallets to ensure stability and protection during international shipping.
